TP613RFL

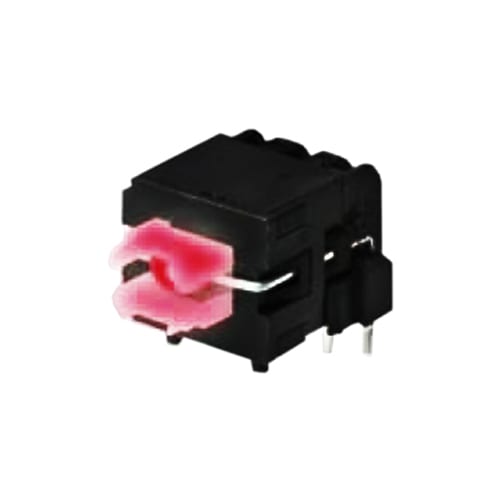

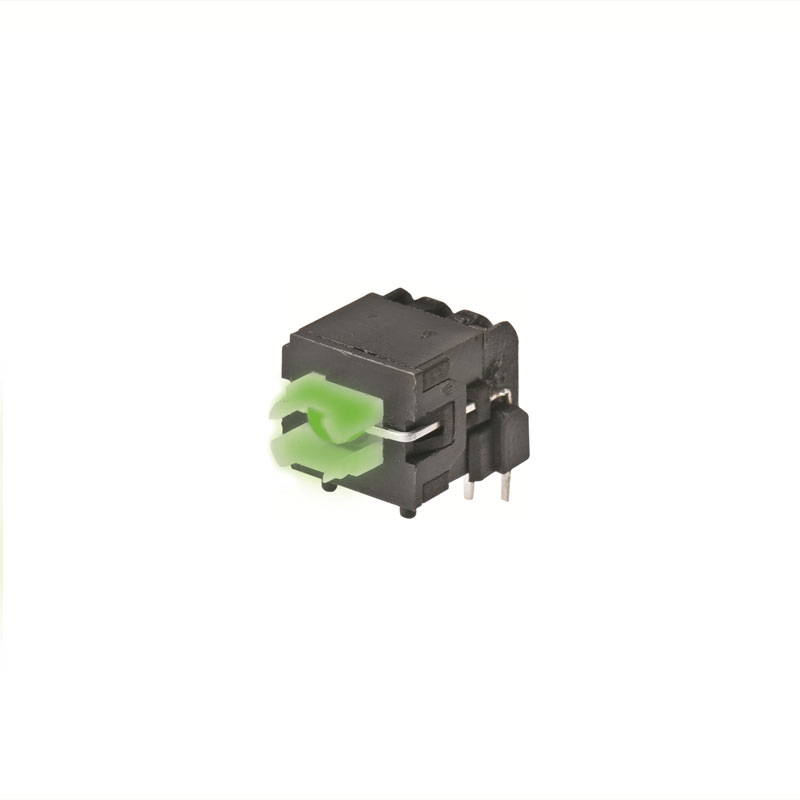

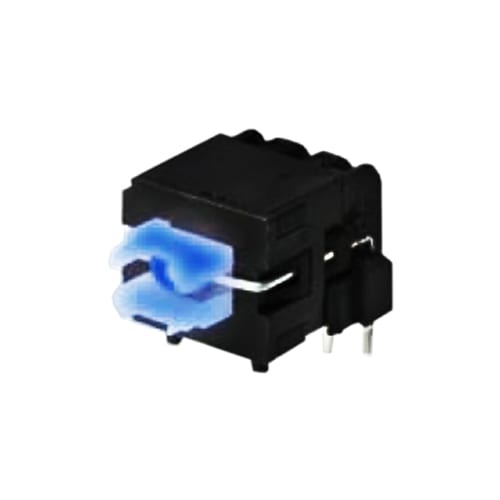

PCB LED button, side actuated with right angle terminal. Equipped with single or bi-colour LED illumination. Available with a momentary or latching function.

Key Features:

  • Switch Only
  • Momentary / latching function
  • Single/bi-colour LED illumination
  • Side actuated with right angle terminal
  • Rating: 0.1A 30VDC
  • Array of caps available
Product Series

Configuration

Illumination

Single LED options

, , , , , , , , ,

Terminal Options

Orientation

# NC Contacts

,

# NO Contacts

,

Function



TP613 Series Specification



Rating 0.1A 30VDC
Insulation Resistance 100MΩ Min (at 500VCD)
Dielectric Strength AC 500V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 10,000 Cycles Min
Ambient Temperature -10°c~ +80°c
Operating force 150 + 100gf (Momentary)

250 + 100gf (Alternate)

200 + 100gf (Momentary with click)

illuminated push button drawing, rjs electronics ltd
