1M - M7 - DPDT - Toggle Switches, PCB switches. RJS Electronics Ltd

1M-M7-DPDT

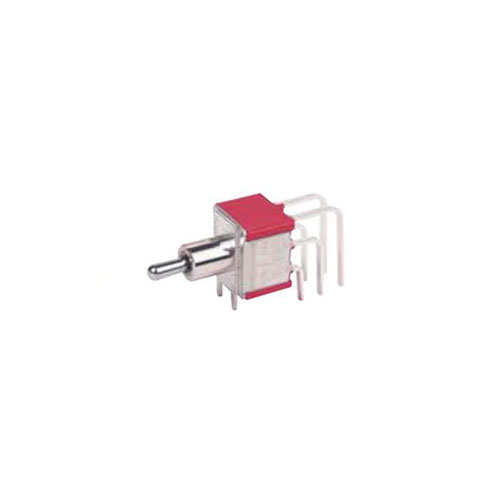

This Miniature PCB Toggle Switch has a vertical right angle mounting and DPDT terminals. It is available with bushing and splash-proof options and can have 2 or 3 positions.

Key Features:

  • Miniature PCB toggle switch
  • Vertical right angle mounting
  • 2 position or 3 position
  • DPDT
  • Contact rating up to 5A
  • Full 1M Series
Data Sheet
Function

IP Rating

Mechanical Operations

Terminal Options

, , ,

Contact Resistance

10 mΩ max. initial @ 2-4VDC
100mA for both silver and gold plated contacts.
Insulation Resistance

1000 Vrms min. @ sea level.
