RJS-1A-DPDT Toggle & Rocker Switches, RJS-1A-DPDT. PCB, Panel mount, Toggle Switches, IP rated, without LED illumination, guards and accessories available. Miniature toggle switch, sealed waterproof toggle switch, sub-miniature toggle switches, ultraminiature toggle switches. Horizontal, right angle, vertical toggle switch. RJS Electronics Ltd.

RJS-1A-DPDT

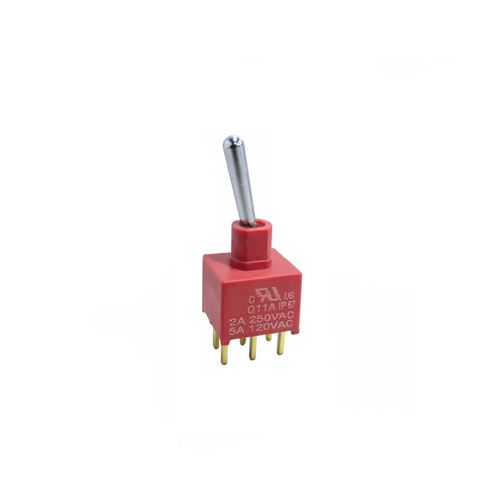

This Miniature PCB Toggle Switch has a vertical configuration and DPDT terminals. It is IP67 rated for resistance to water and dust and has 2 or 3 positions.

Key Features:

  • Miniature PCB toggle switch
  • Vertical configuration
  • 2 position or 3 position
  • DPDT
  • Contact rating up to 5A
  • IP67 rated
  • Full 1A Series
Data Sheet
Function

IP Rating

CONTACT RATING

Dependent upon contact material
CONTACT RESISTANCE

10 m Ω max. initial @ 2-4VDC
1 00mA for both silver and gold plated contacts.
INSULATION RESISTANCE

1,000 MΩ min.
Mechanical Operations

DIELECTRIC STRENGTH

1,000 Vrms min.@sea level.
OPERATING TEMPERATURE

-40°C to 85°C.
Product Series

Drawing for pcb toggle switch, 1A, double pole,
