1M - M7 - 4PDT - Toggle Switches, PCB switches. RJS Electronics Ltd

1M-M7-4PDT

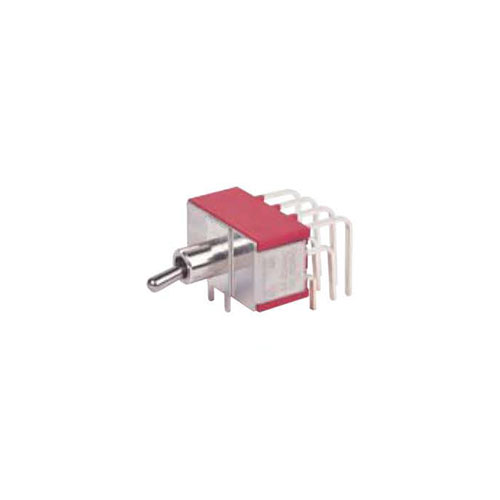

This Miniature PCB Toggle Switch has 4PDT terminals and a vertical right angle mounting. It is available with 2 or 3 positions, as well as bushing and splash-proof options.

Key Features:

  • Miniature PCB toggle switch
  • Vertical right angle mounting
  • 2 position or 3 position
  • 4PDT
  • Contact rating up to 5A
  • Full 1M Series
Data Sheet
Function

IP Rating

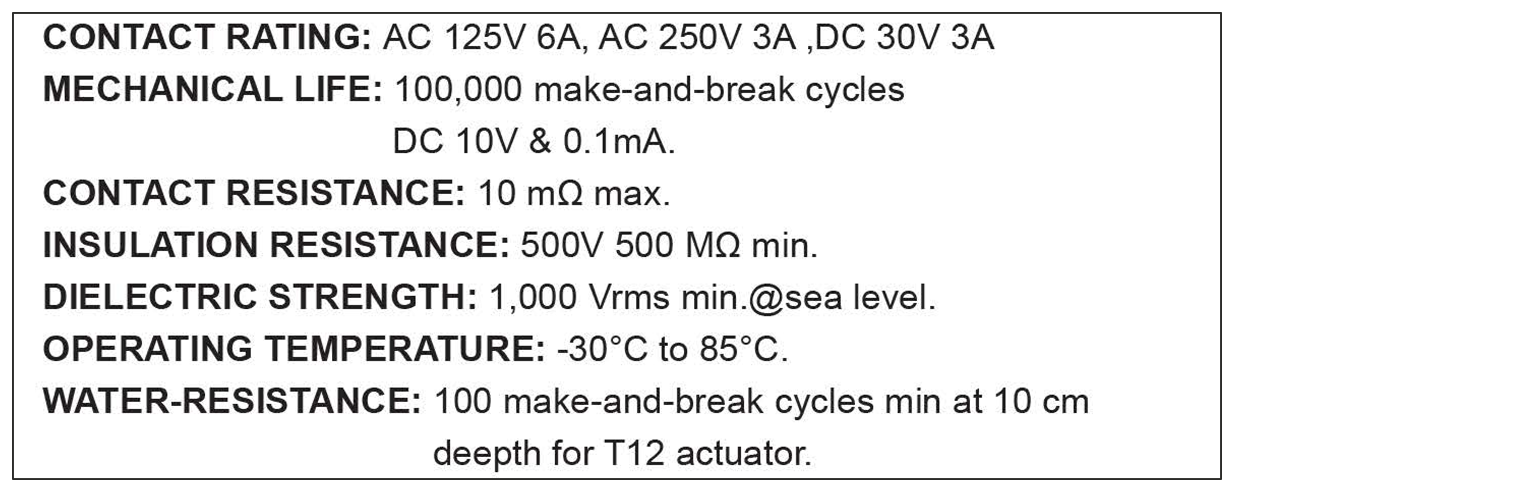

Mechanical Operations

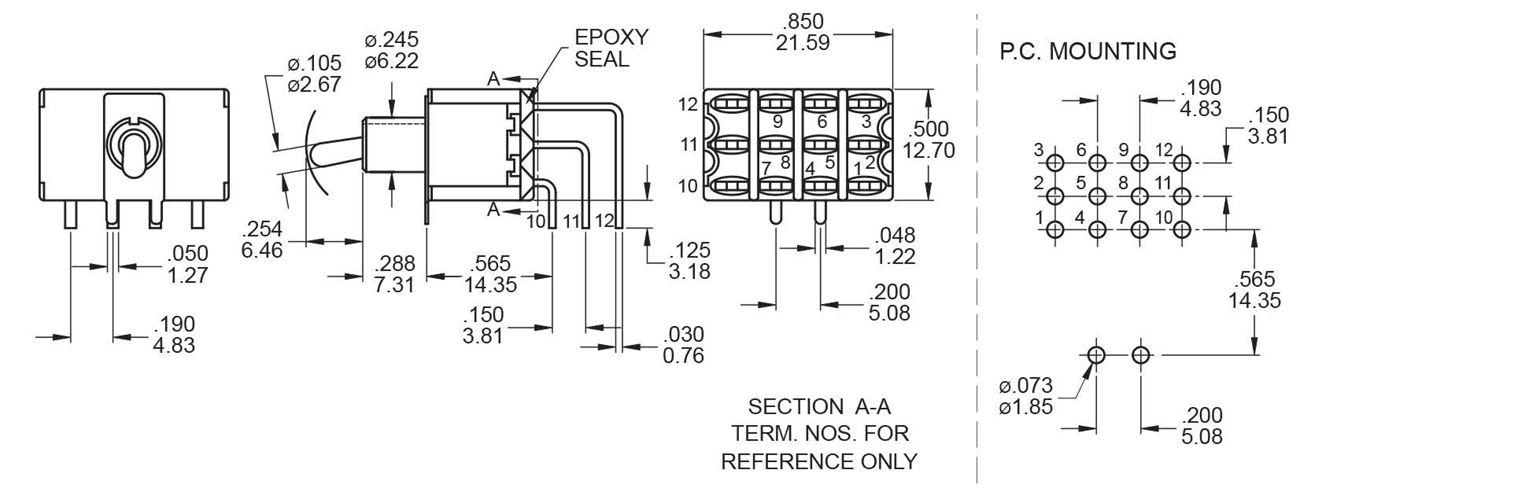

Terminal Options

, , ,

Contact Resistance

10 mΩ max. initial @ 2-4VDC
100mA for both silver and gold plated contacts.
Insulation Resistance

1000 Vrms min. @ sea level.
Product Series
