sub-miniature Toggle switch by PCB, Panel mount, Toggle Switches, IP rated, without LED illumination, guards and accessories available. Miniature toggle switch, sealed waterproof toggle switch, sub-miniature toggle switches, ultraminiature toggle switches. Horizontal, right angle, vertical toggle switch. RJS Electronics Ltd.

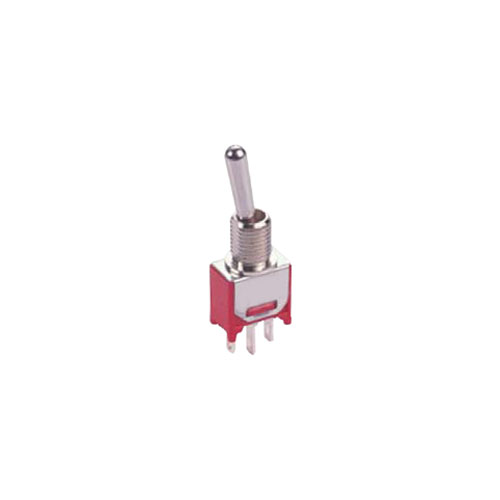

RJS-2M-SPDT

This Sub-Miniature PCB Toggle Switch has a vertical mounting and SPDT terminals. It can have 2 or 3 positions and is available with bushing options.

Key Features:

  • Sub-Miniature PCB toggle switch
  • Vertical mounting
  • 2 position or 3 position
  • SPDT
  • Contact rating up to 3A
  • Full 2M Series
Data Sheet
Function

Mechanical Operations

Product Series

Contact Resistance

20 m Ω max. initial @ 2-4VDC
1 00mA for both silver and gold plated contacts.
Dielectric Strength

1,000 Vrms min.@sea level.
Insulation Resistance

1,000 MΩ min.
