RJS-1A-3PDT

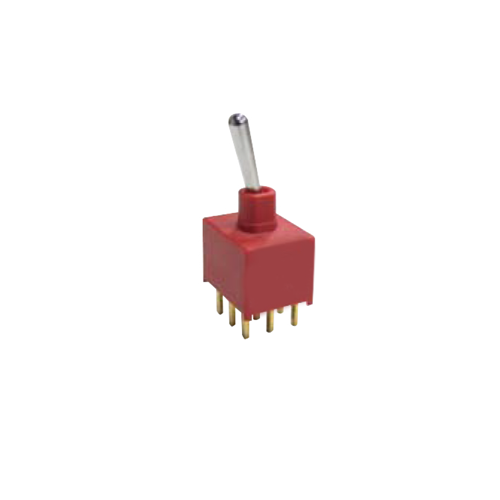

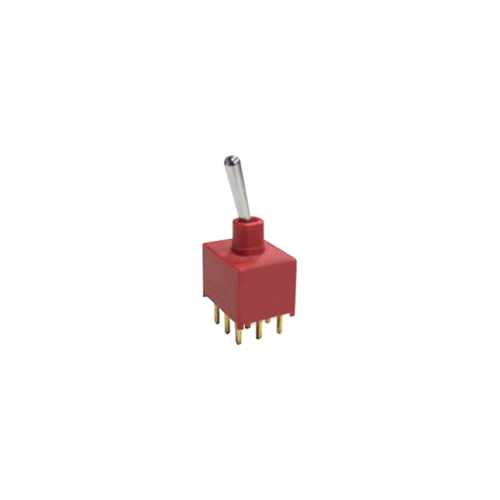

This Miniature PCB Toggle Switch has a vertical configuration and 3PDT terminals. It is IP67 rated for resistance to water and dust, and has 2 or 3 positions.

Key Features:

  • Miniature PCB toggle switch
  • Vertical configuration
  • 2 position or 3 position
  • 3PDT
  • Contact Rating up to 5A
  • IP67 rated
  • Full 1A Series
Data Sheet
Function

IP Rating

CONTACT RATING

*Dependent upon contact material
CONTACT RESISTANCE

10 m Ω max. initial @ 2-4VDC
1 00mA for both silver and gold plated contacts.
INSULATION RESISTANCE

1,000 ΩM min.
DIELECTRIC STRENGTH

1,000 Vrms min.@sea level.
OPERATING TEMPERATURE

-40°C to 85°C.
Mechanical Operations

Product Series
