PCB, Toggle & Rocker Switch, RJS-1A-VS2-VS3-3PDT, plastic, metal, toggle, 3p,dt, PCB, Panel mount, Toggle Switches, IP rated, without LED illumination, guards and accessories available. Miniature toggle switch, sealed waterproof toggle switch, sub-miniature toggle switches, ultraminiature toggle switches. Horizontal, right angle, vertical toggle switch. RJS Electronics Ltd.

RJS-1A-VS2-VS3-3PDT

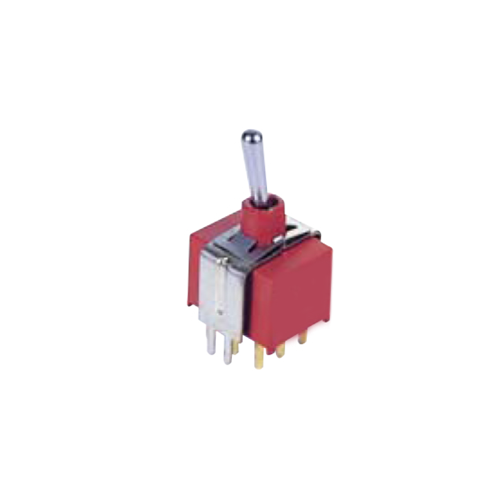

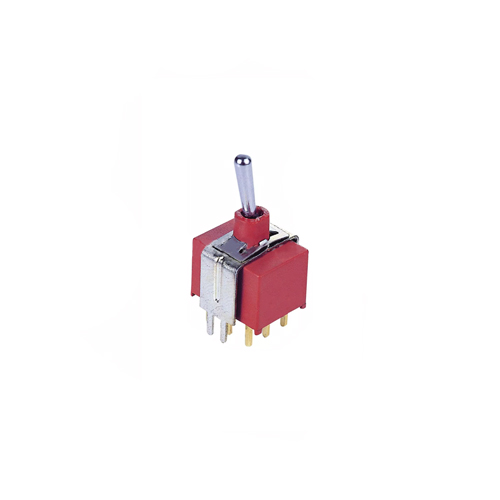

This Miniature PCB Toggle Switch has vertical bracket mounting with 3PDT terminals. It is IP67 rated for resistance to water and dust and can have 2 or 3 positions.

Key Features:

  • Miniature PCB toggle switch
  • Vertical bracket mount
  • 2 position or 3 position
  • 3PDT
  • Contact rating up to 5A
  • IP67 rated
  • Full 1A Series
Data Sheet
Function

IP Rating

CONTACT RATING

*Dependent upon contact material
CONTACT RESISTANCE

10 m Ω max. initial @ 2-4VDC
INSULATION RESISTANCE

1,000 MΩ min.
DIELECTRIC STRENGTH:

1,000 Vrms min.@sea level.
Mechanical Operations
