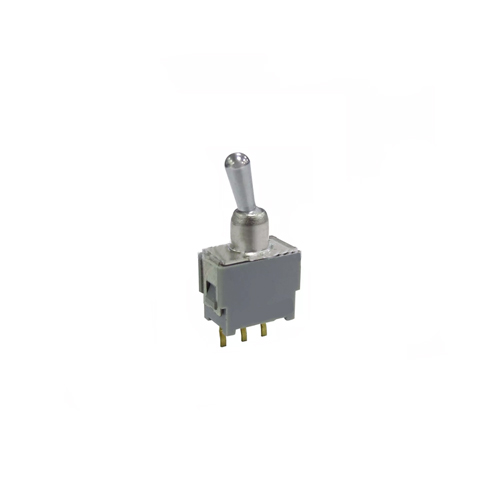

RJS-2TE-M2-SPST

This Sub-Miniature PCB Toggle Switch has SPST terminals and vertical thru-hole mounting. It is IP67 rated for protection against dust and water and can have 2 or 3 positions.

Key Features:

  • Sub-miniature toggle switch
  • SPST
  • Vertical thru-hole mounting
  • 2 position or 3 position
  • Contact rating up to 0.4VA
  • IP67 rated
  • Full 2TE Series
Data Sheet
Function

IP Rating

Product Series

Mechanical Operations

Contact Resistance

Resistance
50 m Ω max.
Insulation Resistance

1,000 M Ω max.
Dielectric Strength

500 Vrms mins .@sea level
