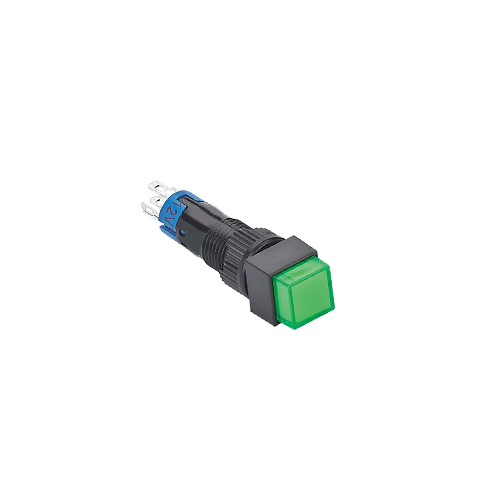

8mm plastic led illuminated push button switch, square plastic cap, panel mount, Led Switches, rjs electronics ltd
panel mount, plastic push button switch with full LED illumination. Available in red, green, yellow and blue. RJS Electronics Ltd.
panel mount, plastic push button switch with full LED illumination. Available in red, green, yellow and blue. RJS Electronics Ltd.
panel mount, plastic push button switch with full LED illumination. Available in red, green, yellow and blue. RJS Electronics Ltd.

RJSPS8A Square Switch

This 8mm Plastic Push Button Switch features a square actuator and full LED illumination. It has a momentary or latching function and is IP40 rated (from the front).

Key Features:

  • Ø8mm
  • Plastic square
  • SPDT
  • LED illuminated
  • Solder-lug terminals
Data Sheet
Product Series

Terminal Options

Illumination

Cap / Actuator Shape

Function

Panel Cut-Out Diameter

IP Rating

Single LED options

, , , , ,

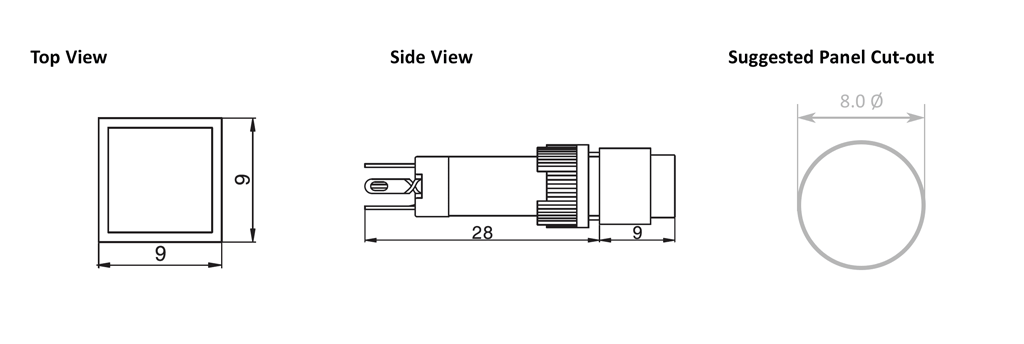

Drawing of RJSPS8A-Square-Push-Button, plastic push button switch, rjs electronics ltd
