RJSENCODE-11B20204

  • Vertical type encoder
  • 11mm
  • 250V DC 100MΩ MIN
  • 300V AC 1min
  • Dentent torque (gf – cm) 30 ~200
  • Rotational life (cycle) 15,000
Function

Product Series

Illumination

Rotational Life (cycle)

15,000

Detent torque( gf - cm)

30 ~ 200

Insulation Resistance

250V
100MΩ MIN

Pulse 8

Number of detent: 0 / 16, Phase difference (msec): 4, Chattering (msec): 3, Sliding noise (msec): 3

Pulse 15

Number of detent: 0 / 30, Phase difference (msec): 6, Chattering (msec): 2, Sliding noise (msec): 2

Pulse 16

Number of detent: 0 / 16, Phase difference (msec): 4, Chattering (msec): 3, Sliding noise (msec): 3

Pulse 20

Number of detent: 0 / 20, Phase difference (msec): 4, Chattering (msec): 2, Sliding noise (msec): 2

Dielectric Strength

300V AC 1min

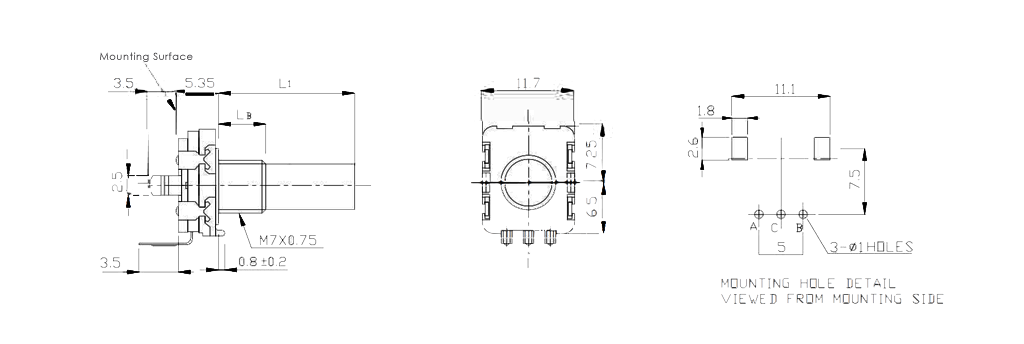

Drawing
