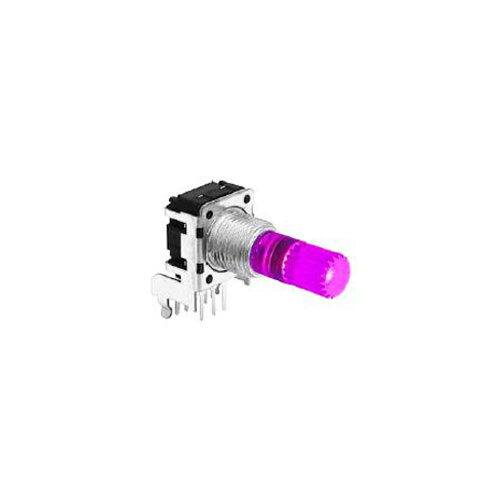

RJSILLUME-12S24217KM

  • Horizontal LED illuminated Encoder
  • High precision LED Illuminated Rotary Encoder
  • Compact design with long life and high reliability
  • High brightness
Function

,

Illumination

Single LED options

, , , , , , ,

Multi-Colour LED Options

Mechanical Operations

Switch Travel

Switch Action

Product Series

Rating

DC 5V
10 mA

Contact Resistance

100 mΩ

Insulation Resistance

250V DC
100MΩ Min

Dielectric Strength

300V AC
1 Min

Circuit
