RJSILLUME-12S24218KM PCB Mount, Encoder switches, led illuminated encoder with push button switch, three colour illumination, LED switches, RJS Electronics Ltd.

RJSILLUME-12S24218KM

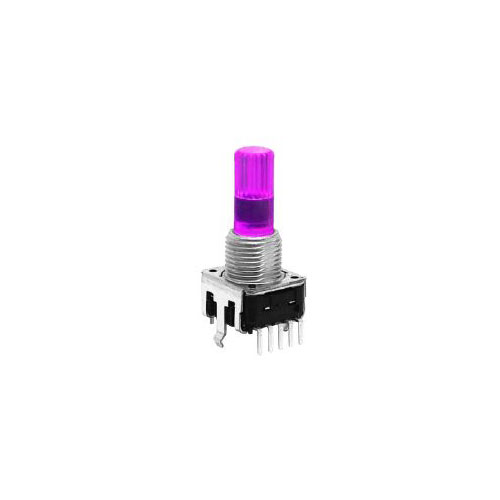

This 12mm Rotary Encoder features a push button function and has three-colour LED illumination (red/green/blue), with high brightness for working in darkness. This is a horizontal-type encoder with bushing.

Key Features:

  • Rotary encoder with push button
  • Three colour LED illumination (red/green/blue)
  • High brightness
  • Horizontal type
  • 12mm
  • Rotational life (cycle): 30,000
  • With bushing
Data Sheet
Function

,

Illumination

Single LED options

, , , , , , ,

Multi-Colour LED Options

Mechanical Operations

Switch Travel

Switch Action

Rating

DC 5V
10 mA
Contact Resistance

100 mΩ
Insulation Resistance

250V DC
100MΩ Min
Dielectric Strength

300V AC
1 Min
Product Series

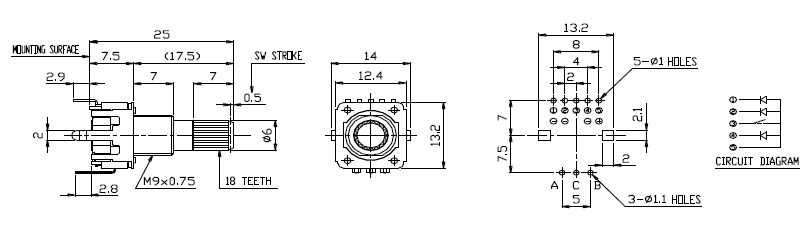

Drawing of RJSILLUME-12S24218KM PCB Mount, Encoder switches, led illuminated encoder with push button switch, three colour illumination, LED switches, RJS Electronics Ltd
