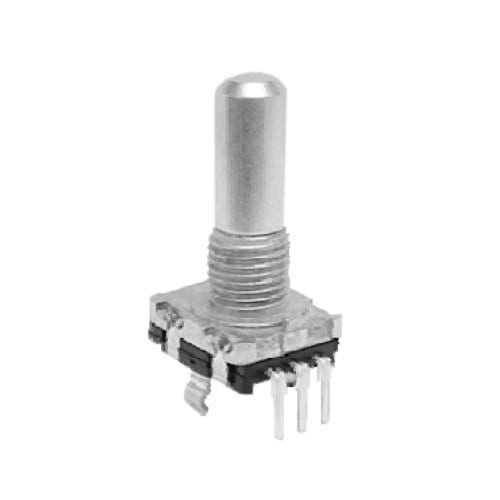

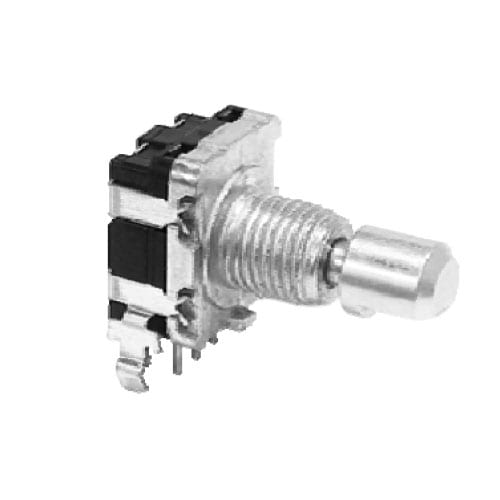

Encoder Switch
RJSENCODE-11 - Image 2

RJSENCODE-11

Key Features:



• High-precision rotary type encoder.
• Compact design, long life and high reliability.
• Low cost as compared with optical type.
• Available in a wide variety of line up to meet all user needs.





Data Sheet
Illumination

Function

Insulation Resistance

250V DC
100MΩ MIN
Dialectric Strength

300V AC
1min
Rotational Life

15,000
Rating

DC 5V10 mA
Contact Resistance

100 mΩ
Travel of Switch (mm)

0.5
1.5
Operating Force (gf)

600±300
400±200
