22mm metal push button switch, Dot LED illuminated, antivandal switch, panel mount, LED SWITCHES, RJS Electronics Ltd

RJS103-22L-MD

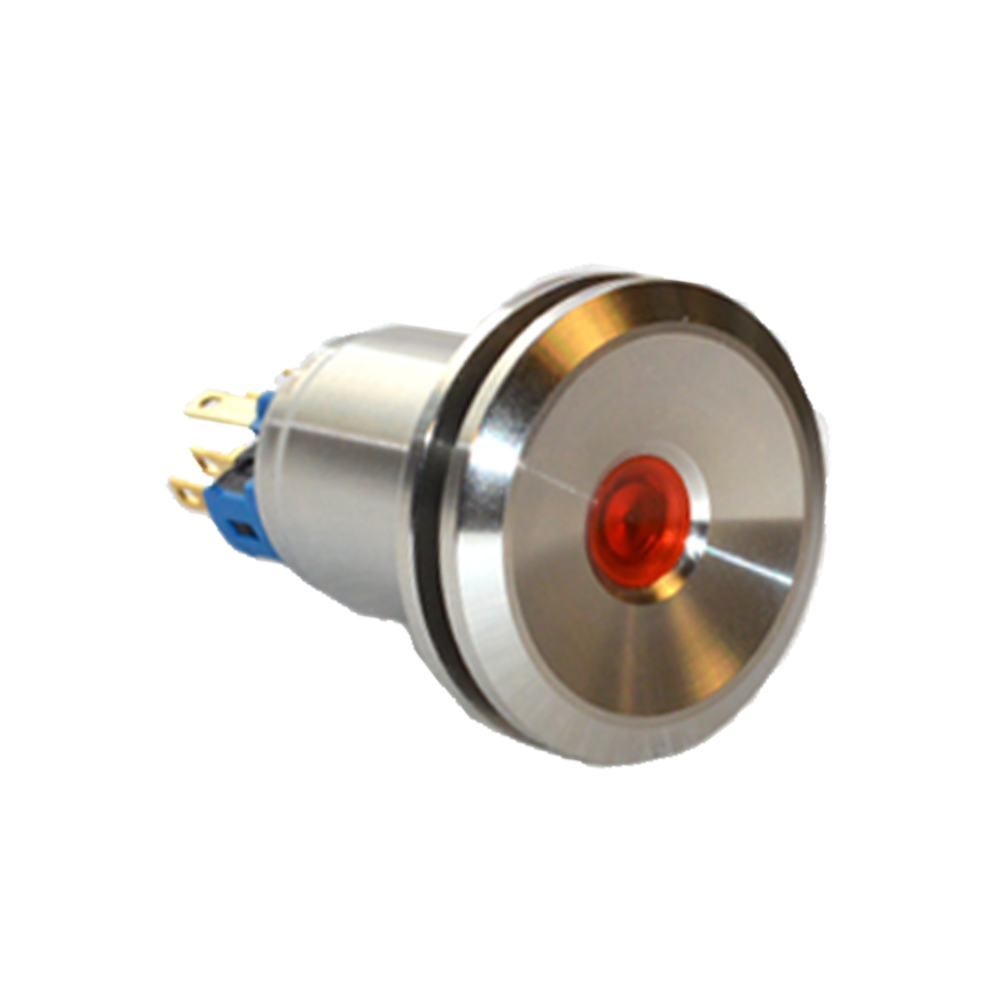

22mm Antivandal, Flat Mushroom Head Switch with Dot LED Illumination

Key Features:

Ø 22mm Panel cut out
Momentary
Dot LED illuminated
IP67 rated (from the front)
SPDT
5A rating.

Applications:

Automotive
Boat building & Marine
Security
Door entry
Medical

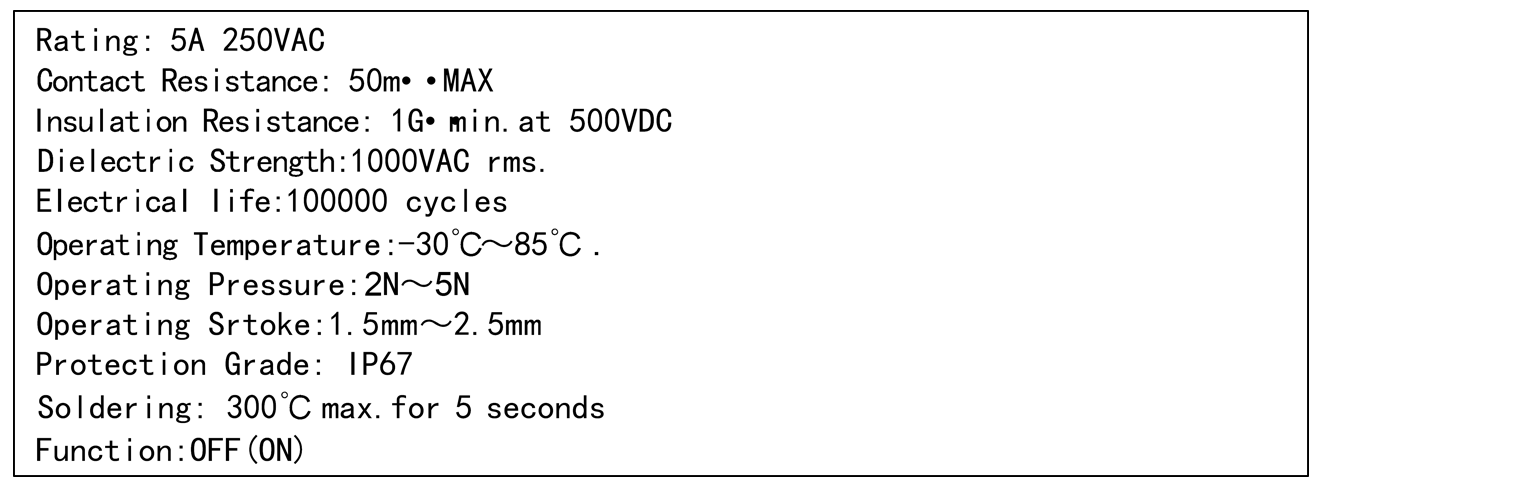

Additional information

Function	Push Button Switch, Momentary Switch
IP Rating	IP67 (front)
Illumination	Dot
Single LED options	Blue, Green, Red, White, Yellow

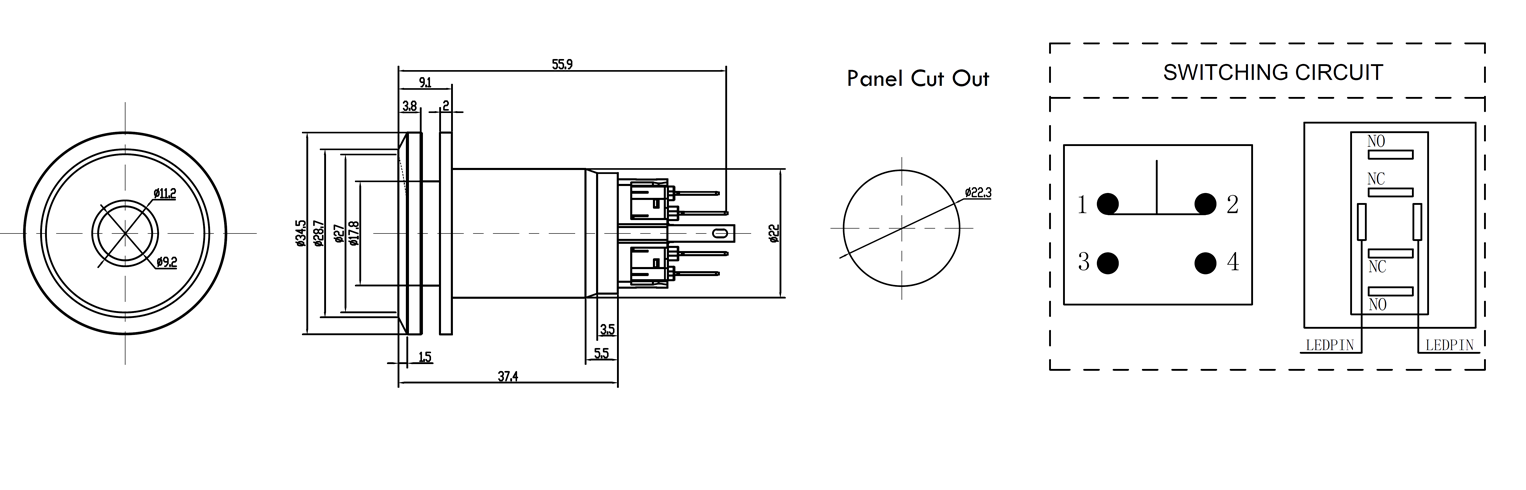

Panel Cut-Out Diameter	Ø 22mm
Electrical Operations	10,000 cycles
Contact Resistance	50m Max
Insulation Resistance	1G min – 500VDC
Dielectric Strength	1000VAC rms
Operating Pressure	2N～5N
Configuration	SPST

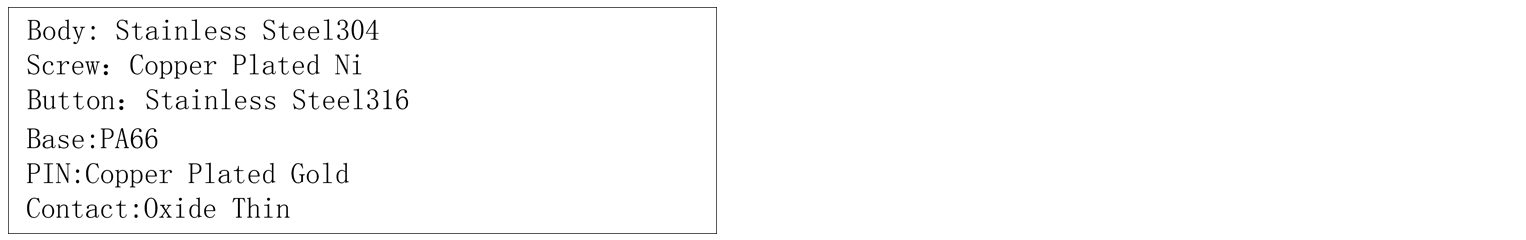

Product Material Options	Metal Switches
Product Series	RJSX03
