RJSX03-25L-MD

  • 25mm Momentary Push Button Switch
  • Flat mushroom head with dot illumination
  • Function Off/On.
  • SPST
  • LED Illumination
  • IP 67 (front) rated.
  • 5A rating.
Function

,

IP Rating

Illumination

Single LED options

, , , ,

Panel Cut-Out Diameter

Electrical Operations

Contact Resistance

50m Max

Insulation Resistance

1G min – 500VDC

Dielectric Strength

1000VAC rms

Configuration

Circuit

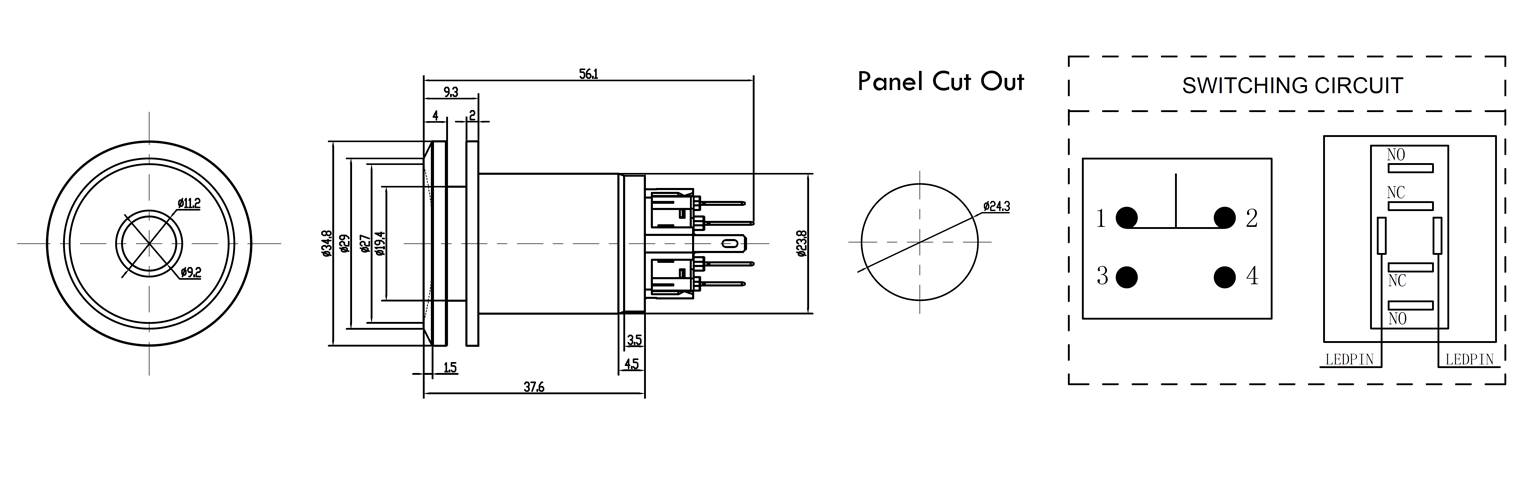

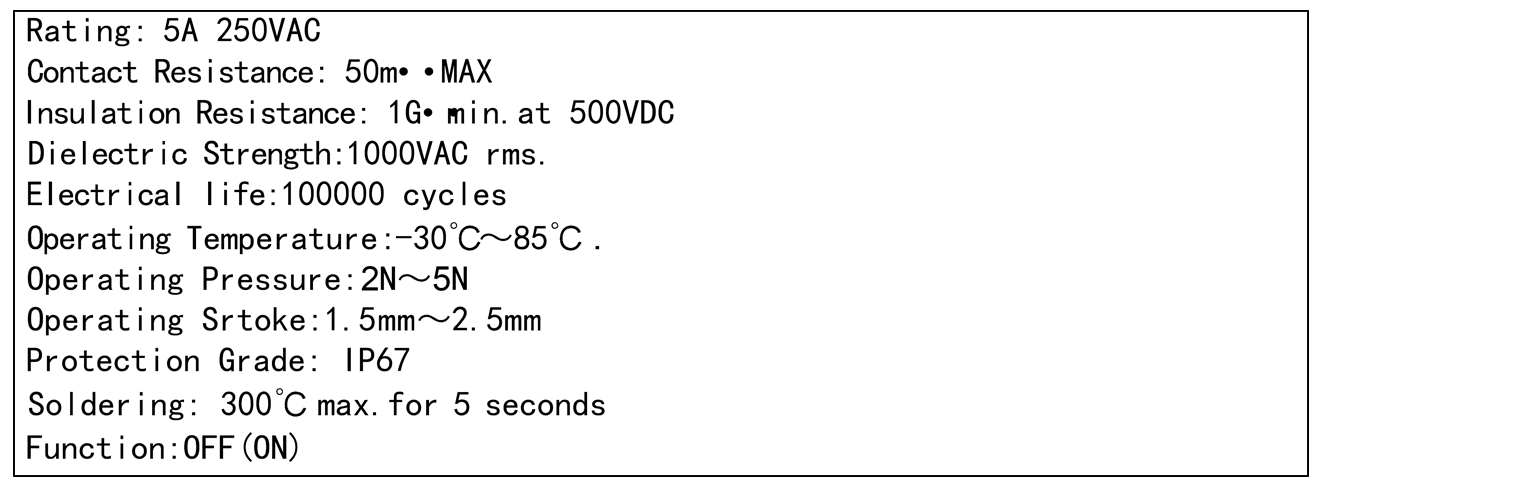

Mechanical & Electrical Specs

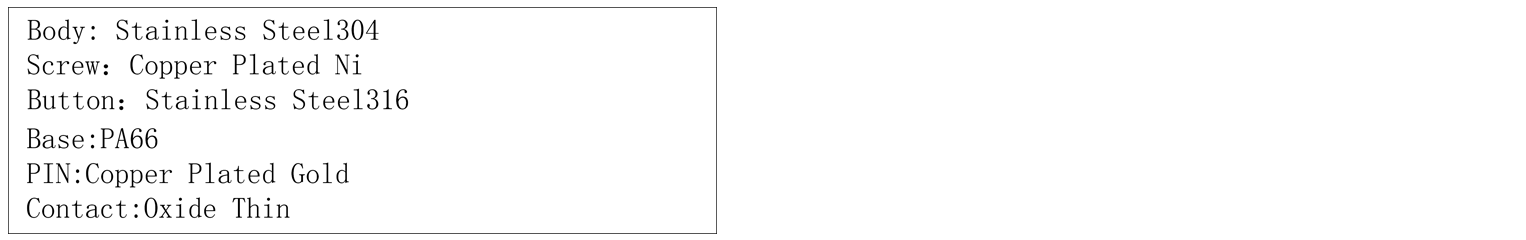

Materials
