| Illumination | |
|---|---|
| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Without LED, Yellow |
| Cap Dimensions (mm) | |
| Cap / Actuator Shape | |
| Terminal Options | |
| Orientation | |
| Function | |
| Product Series |

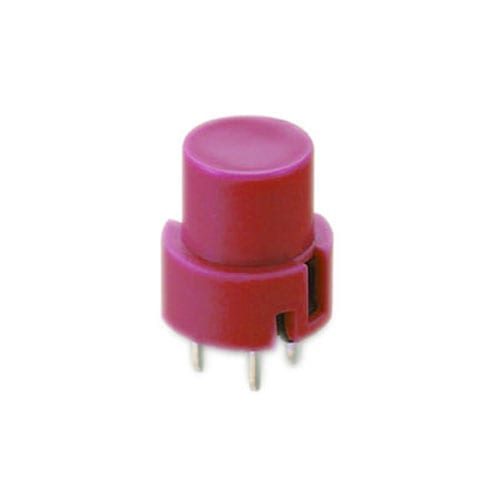

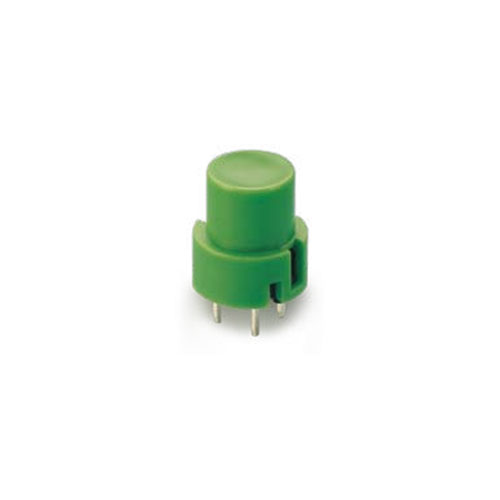

Through hole push button switch, PCB mount. Non-illuminated option with momentary function.
Key Features:
| Illumination | |
|---|---|
| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Without LED, Yellow |
| Cap Dimensions (mm) | |
| Cap / Actuator Shape | |
| Terminal Options | |
| Orientation | |
| Function | |
| Product Series |
|

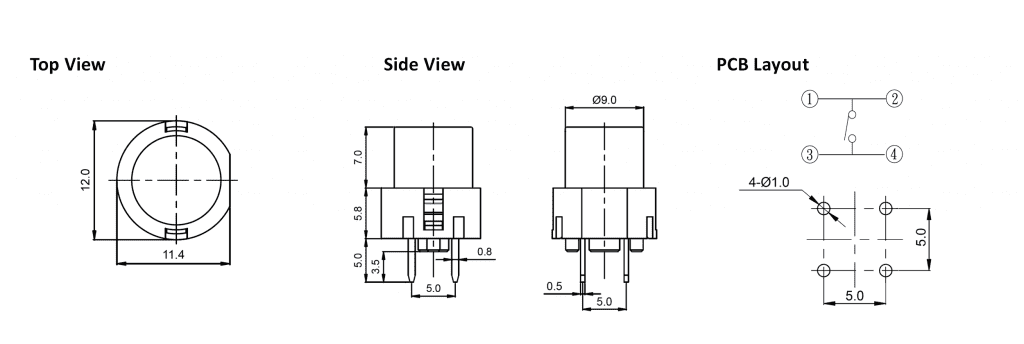

KS Series Specification
|
|
| Rating | 10mA 35VDC |
| Insulation Resistance | 100MΩ Min (at 250VCD) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 30mΩ Max. (Initial) |
| Electrical Life | V:130gf 100,000 Cycles Min
M: 250gf 30,000 Cycles Min |
| Ambient Temperature | -20°c~ +60°c |
| Operating Force | V: 130 + 50gf |
| M: 250 + 50gf | |
| Travel | 1.0 + 0.2 mm |
