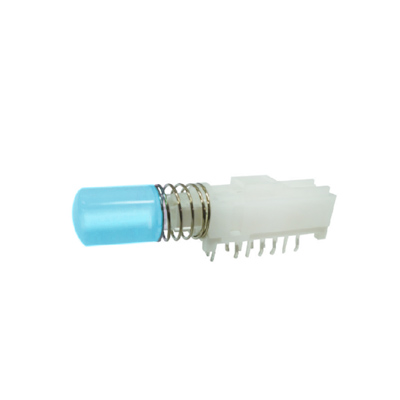

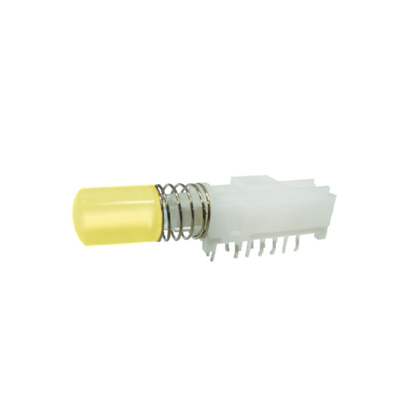

ML-2L(XX)-BT

PCB push button switch with LED illumination, available in single or bi-colour LED options. Equipped with momentary (non-lock) or latching (non-lock) function.

Key Features:

  • LED illuminated push button switch
  • Lock function
  • Single/bi-colour LED illumination
  • Contact rating: 30 V DC, 0.3 A
  • Right angle
Product Series

Function

Illumination

Terminal Options

Orientation

ML Series specifications

Switch specifications
Pole–position 2P2T, 4P2T

LOCK/NON-LOCK action with LED

Contact rating 30V DC, 0.3 A
Contact resistance 20mΩ MAX.  1.5V DC; 100mA by method of voltage DROP
Insulation resistance 100MΩ MIN. 500V DC for 1 minute
Dielectric strength Breakdown is not allowable: 500V AC for 1 minute
Operating force 200 + 100gf
Operating life 10,000 cycles
Operating temperature range -20°C~70°C
Total travel FULL TRAVEL: 2.5 + 0.3mm

CONTACT TRAVEL: 3.3 + 0.3mm



LED specifications
ATTENTION

LEDs are electrostatic sensitive devices



Unit

Value/LED colour
Blue Green Red Yellow
Forward current (lf) mA 20 20 20 20
Reverse voltage (Vr) V 5.0 5.0 5.0 5.0
Reverse current (lr) µA 10 10 10 10
Forward voltage@20mA (Vf) V 3.3-4.0 2.1-2.5 2.0-2.5 2.0-2.5
Luminous intensity@20mA (lv) mcd 1300 700 900 700

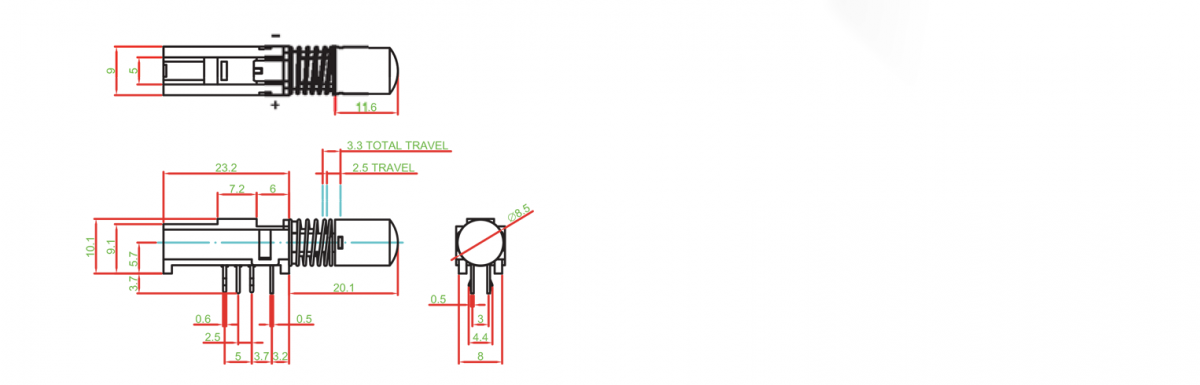

illuminated LED buttons, switch drawing, rjs electronics ltd
