PB61302B

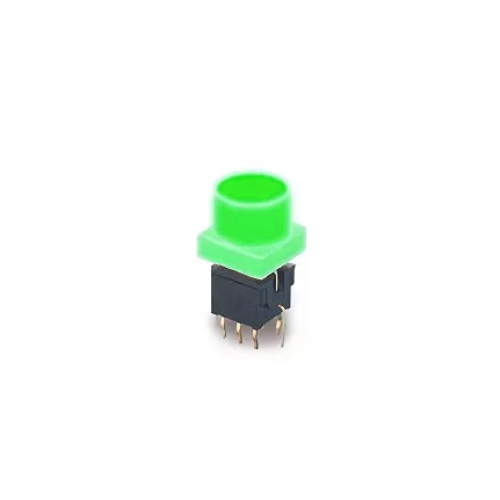

This PCB push button switch features an LED illuminated button. Available with momentary function, and both single and bi-colour illumination options.

If you require RGB illumination in the same cap style, the PB615302 model is a great alternative.

Key Features:

  • Switch height – 19.8mm
  • PCB mounting – THT
  • Switch circuit – DPDT (8 pin)
  • Momentary function
  • Illuminated & non-illuminated options
  • Round button shape
Product Series

Switch Action

, ,

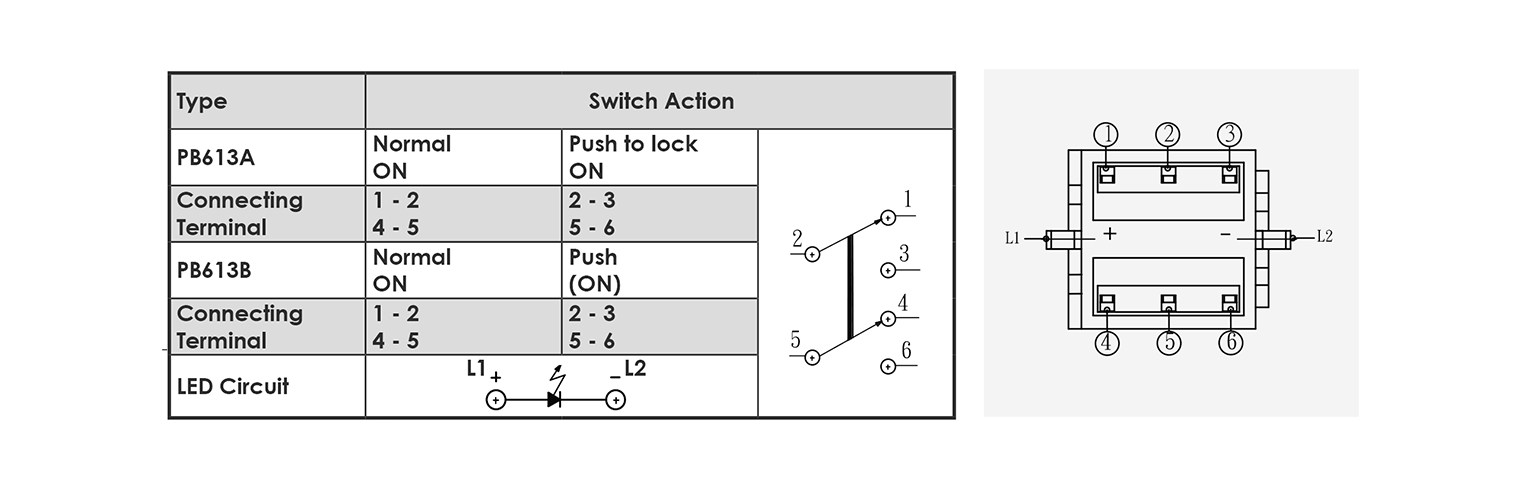

Switch Circuit

Function

,

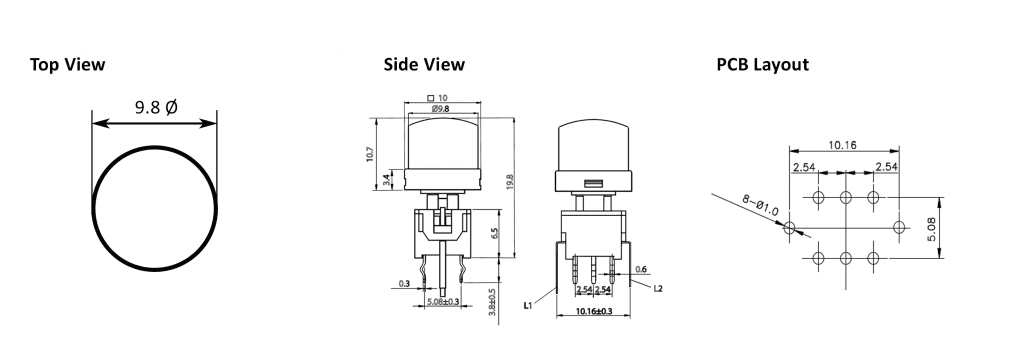

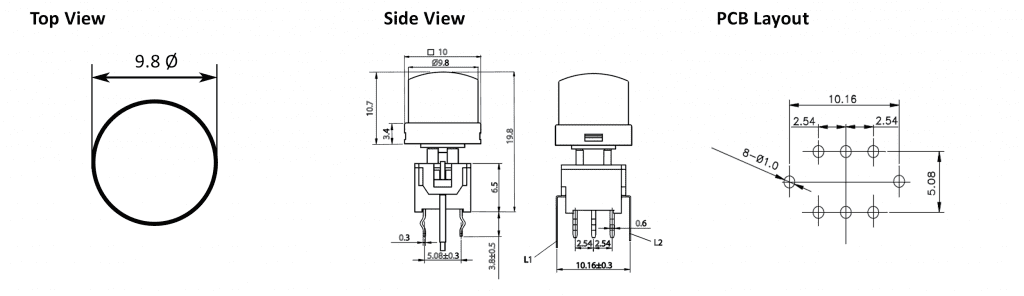

PB613 pcb switch technical drawing, rjs electronics ltd



PB613 Series Specification



Rating 0.1A 30VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 500V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 10,000 Cycles Min
Ambient Temperature -10°c~ +80°c
Operating Force 150 + 100gf (Momentary)
250 + 100gf (Alternate)
200 + 100gf (Momentary with click)
