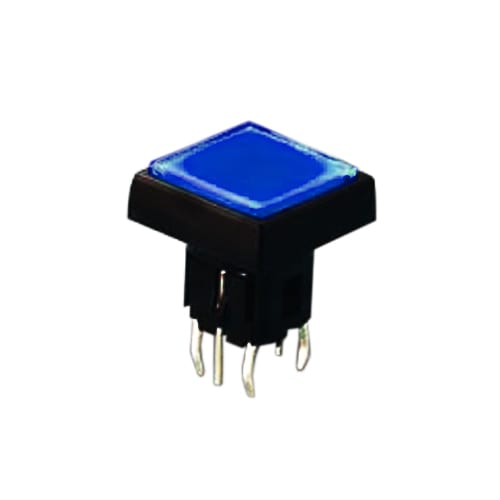

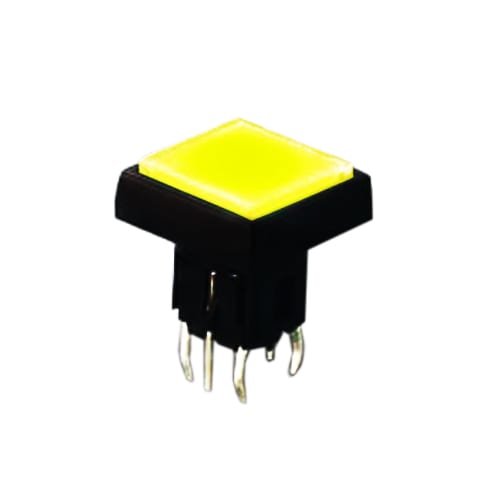

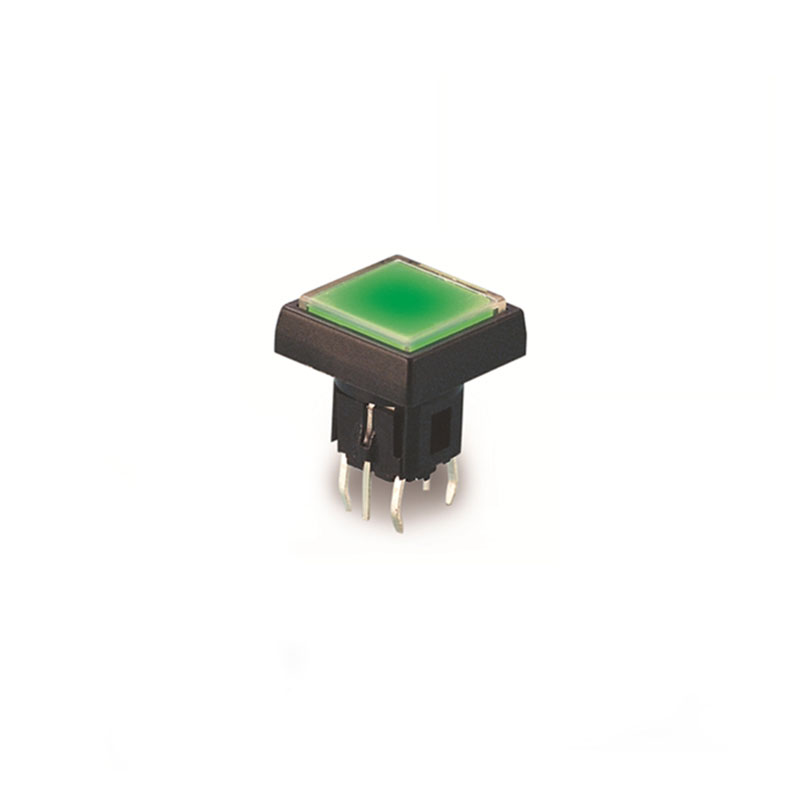

The LED Illuminated Push Button Switch offers single or bi-colour LED illumination. Its square cap makes it easy to use and it’s adequate for DIP and SMT. The switch comes in both metal dome and rubber dome options to suit your requirements.
Key Features:

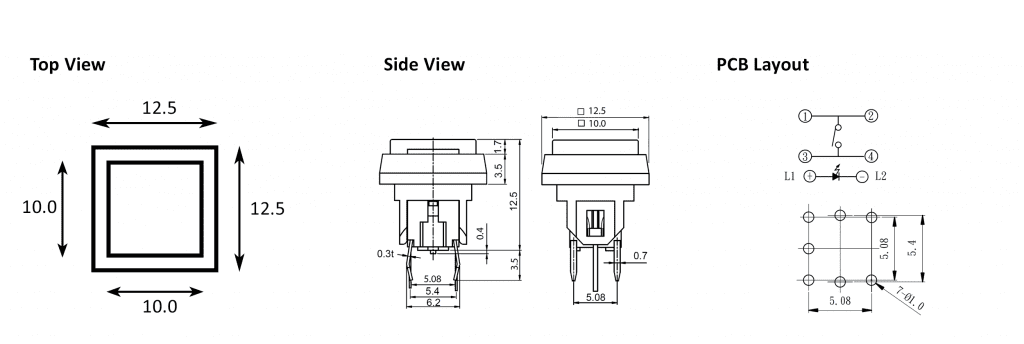

| Configuration | |
|---|---|
| Illumination | |
| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Yellow |
| Cap Dimensions (mm) | |
| Cap / Actuator Shape | |
| Terminal Options | |
| Orientation | |
| Function | |
| Product Series |
| PB6X7 Series | PB617 | PB627 | PB637 | TP647 |
| Rating | 50mA 48VDC | 10mA 12VDC | 50mA 48VDC | 50mA 12VDC |
| Insulation resistance | 100MΩ Min (at 500VCD) | 100MΩ Min (at 500VCD) | 100MΩ Min (at 500VCD) | 100MΩ Min (at 500VCD) |
| Dielectric strength | AC 250V (50/60 Hz for 1 minute) | AC 250V (50/60 Hz for 1 minute) | AC 250V (50/60 Hz for 1 minute) | AC 250V (50/60 Hz for 1 minute) |
| Contact resistance | 100mΩ Max. (Initial) | 500mΩ Max. (Initial) | 100mΩ Max. (Initial) | 20mΩ Max. (Initial) |
| Electrical life | 300,000 Cycles Min | 100,000 Cycles Min | 300,000 Cycles Min | 100,000 Cycles Min |
| Ambient temp | -20°c~ +70°c | -20°c~ +70°c | -20°c~ +70°c | -20°c~ +70°c |
| Travel | 0.25 + 0.1mm | 1.0 + 0.2mm | 0.6 + 0.2mm | 1.0mm MIN |
| Operating force | 160 + 50gf
100 + 30gf 250 + 50gf |
100 + 40gf | 250 + 50gf | 200gf MIN |
