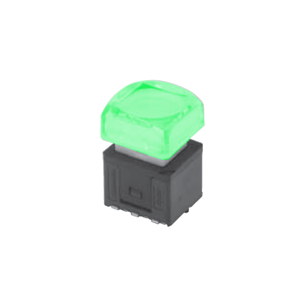

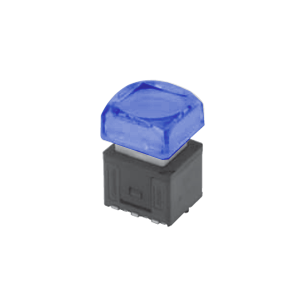

This PCB Push Button Switch features a 15mm square cap and a momentary function, with or without a tactile click. It can be LED illuminated, with single or bi-colour illumination options.
Key Features:
| Function | |
|---|---|
| Multi-Colour LED Options | |
| Cap / Actuator Shape | |
| Illumination | |
| Switch Travel | |
| Product Series |
RJS-KA Series specifications
| Type | KA | K2 | K9 | |
| Contact | Gold plated | |||
| Electrical rating | Maximum load: DC24V, 20 mA (resistance band) | |||
| Insulation resistance | More than 100MΩ at 500V DC | |||
| Dielectric strength | Between terminals of the same pole: AC1000V
Between terminals and the ground: AC1500V At 50/60 Hz, each for 60 sec. and normal temperature and humidity |
|||
| Contact resistance | Less than 200mΩ (initial) at DC6V 0.05A | Less than 200mΩ (initial) at DC6V 0.1A | ||
| Mechanical life | More than 3 million operations | More than 3 hundred thousand operations | ||
| Electrical life | More than 3 million operations at max. rated load | More than 3 hundred thousand operations at max. rated load | ||
| Ambient temperature | -15°C~+50°C | |||
| Ambient humidity | 80% RH (max) | |||
