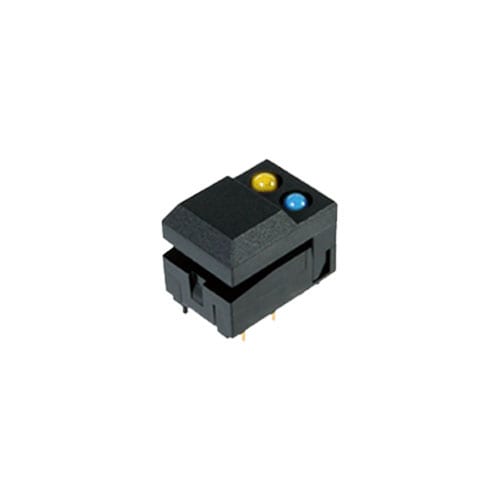

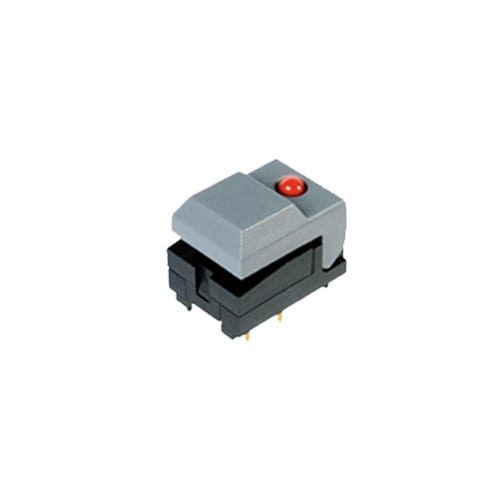

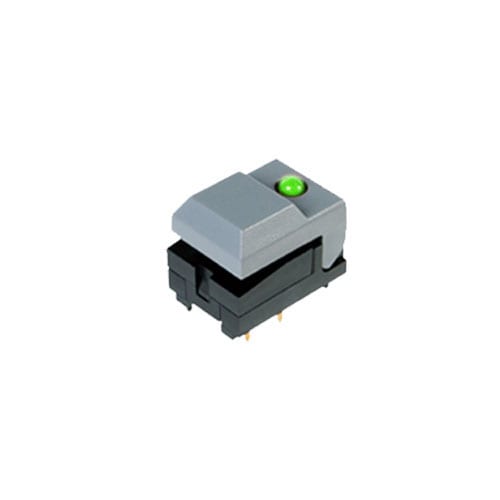

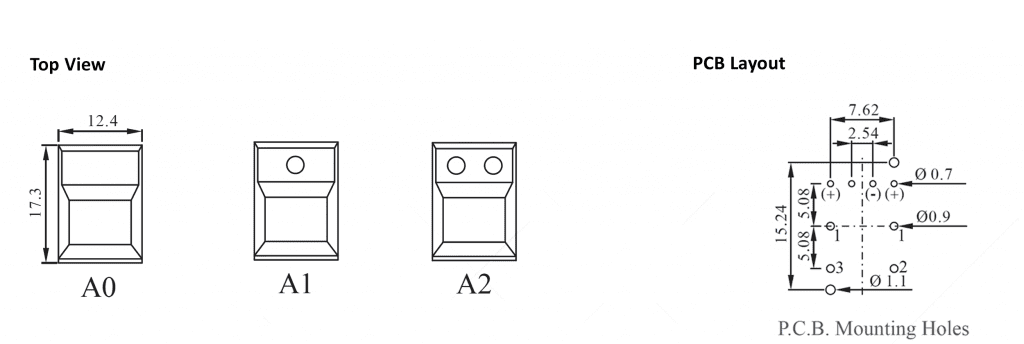

This PCB Push Button Switch features a piano style cap with single or dual LED illuminated lamps, and a tactile ‘clicky’ feel. Cap available in 8 different colours.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Configuration | |
| Single LED options | |
| Switch Travel | |
| Terminal Options |
|
SP86N Series Specification
|
|
| Circuit | SPDT |
| Current rating | 12mA |
| Voltage rating | 24 VDC |
| Contact resistance | 50mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | SP86N(170gf+50gf)/SP86N-H(400gf+100gf) |
| Total travel | 2.3mm+0.5mm |
| Mechanical life | 1,000,000 cycles min |
| Solder specifications | 260deg for 3 seconds |
| Operating temperature | -10deg~+60deg |
| Function | Momentary |
|
SP86N Series Materials
|
|
| Cap | Acrylonitrile Butadine Styrene (ABS) |
| Case | Polyamide (PA) |
| Fixed support | Stainless steel wire |
| Terminal | Phosphor bronze (PBS) with gold plating |
| Movable contacts | Phosphor bronze (PBS) with gold plating |
| Spring | Piano wire |
| LED | 3mm diameter LED lamp |
