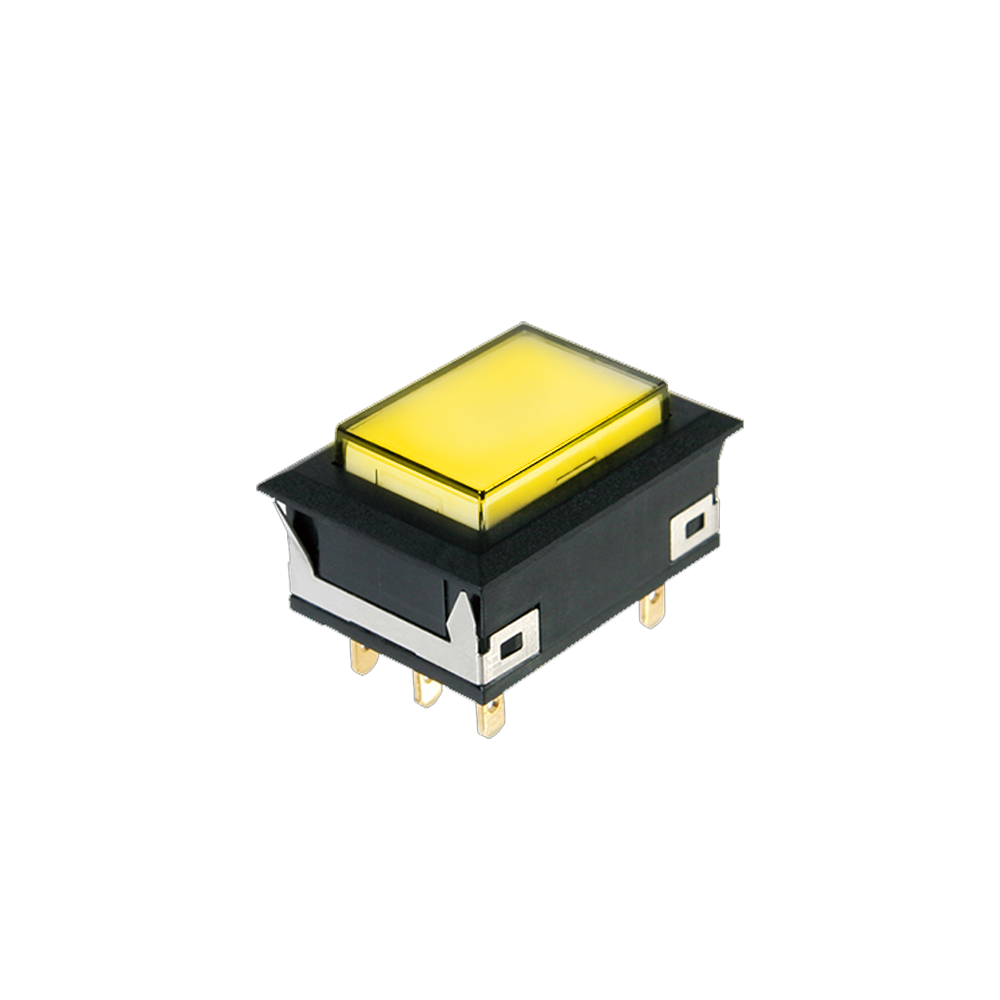

This rectangular PCB Push Button Switch features full face LED illumination and can have a momentary or latching function. Choose from single colour or RGB illumination. Compatible with Smart Caps.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Cap / Actuator Shape | |
| Configuration | |
| Illumination | |
| Single LED options | |
| Multi-Colour LED Options |
|

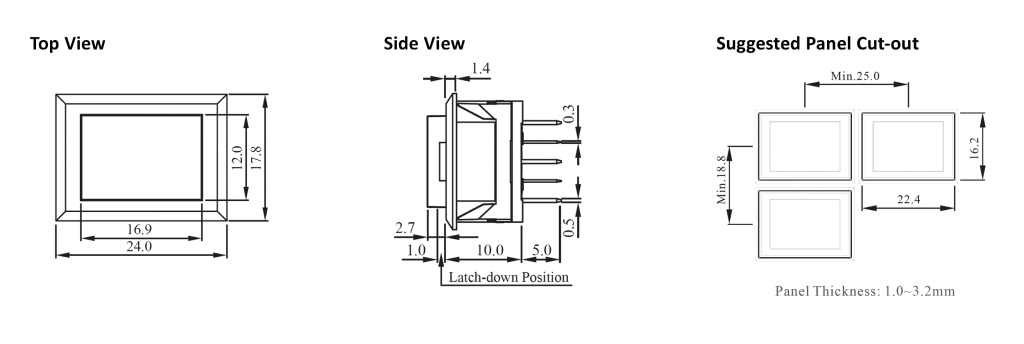

SPC Series Specification
|
|
| Circuit | SPDT or DPDT |
| Rating | 3A. 125/250 V AC or 3A@30 VDC |
| Contact resistance | 50mOhm max.(initial) |
| Insulation resistance | 200MOhm min |
| Operating force | Single pole: 190gf+50gf
Double pole: 200gf+50gf |
| Total travel | 2.3mm+0.5mm |
| Mechanical life | 1,000,000 cycles min. for Momentary
200,000 cycles min. for Alternate |
| Electrical life | 10,000 cycles min. for silver alloy contact |
| Operating temperature | -25deg~+50deg |
| Function | Momentary or alternate |
|
SPC Series Materials
|
|
| Cap | Polycarbonate (PC) |
| Housing | Polyamide (PA) |
| Snap-in frame | Stainless steel |
| Switch/LED terminal | Phosphor bronze (PBS) with gold plating |
| Movable contacts | Silver alloy |
| Spring | Piano wire |
| Base | Polyamide (PA) |
| LED | Surface type LED |
