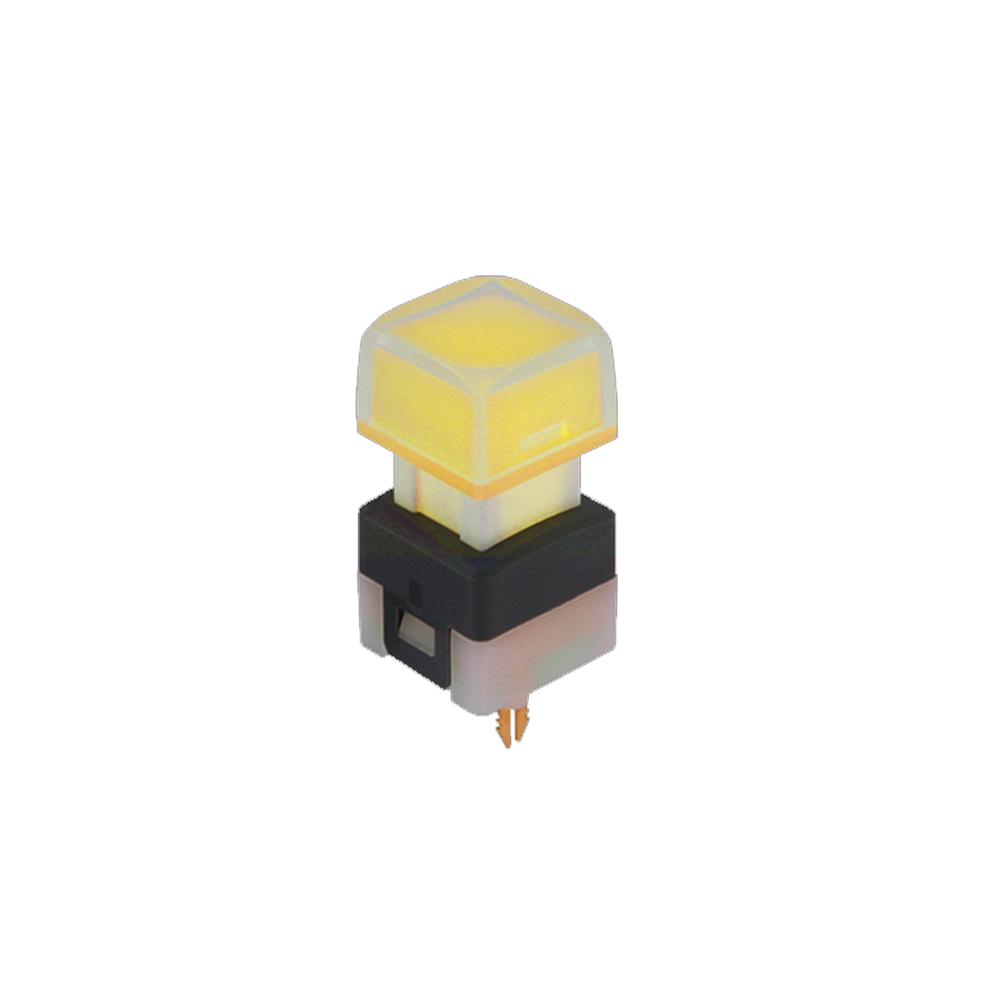

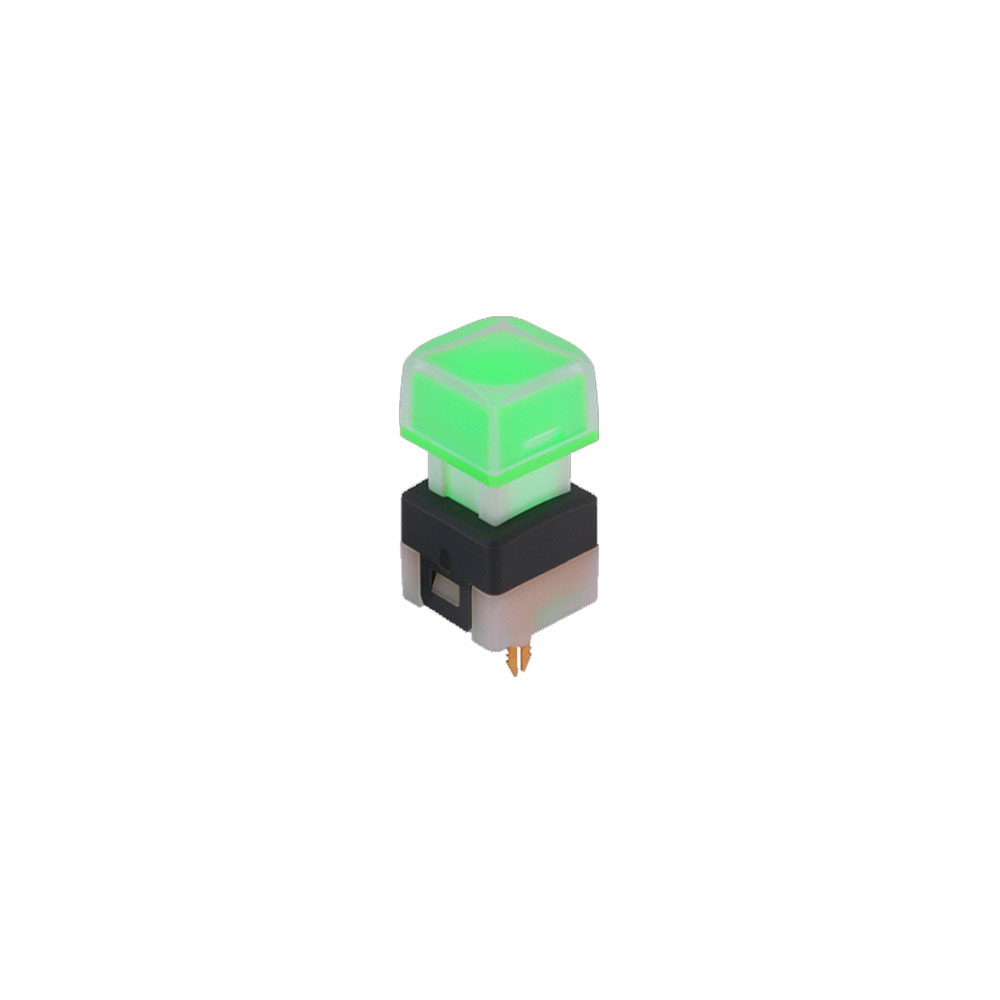

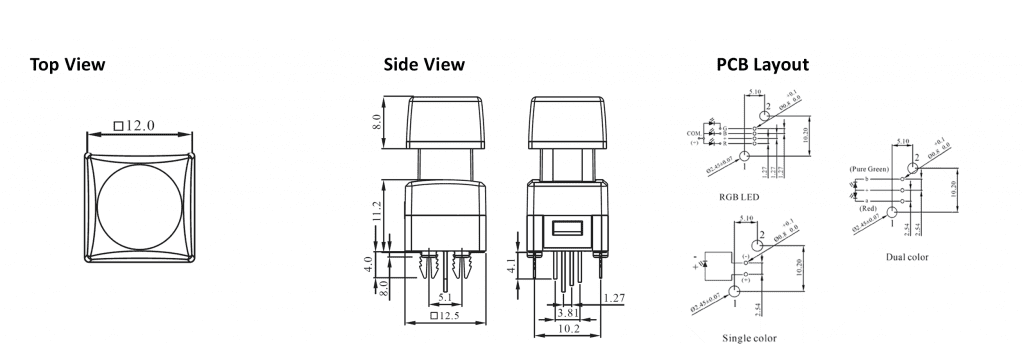

This PCB Push Button Broadcast Switch features full face LED illumination, momentary function and a silent push. Choose single, bi-colour or RGB illumination. Compatible with Smart Caps.
Key Features:
| Product Series | |
|---|---|
| Configuration | |
| Illumination | |
| Single LED options | |
| Orientation | |
| Cap / Actuator Shape | |
| Function |
|
SPG-Z Series Specification
|
|
| Current rating | 50mA |
| Voltage rating | 48VDC |
| Contact resistance | 100mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | 250gf + 50gf (S1~4) |
| Total travel | 4.5mm + 0.20mm |
| Mechanical life | 5,000,000 cycles min |
| Solder specifications | 260 deg for 3 seconds |
| Function | Momentary (SPST) |
| Operating temperature | -25deg~+70deg |
|
SPG-Z Series Materials
|
|
| Cover | Polycarbonate (PC) |
| Cap | Polycarbonate (PC) |
| Reflector | Polyoxymethylene (POM) |
| Base cap | Polyamide (PA) |
| Moving contact | Phosphor bronze with gold plating |
| Base | Polyamide (PA) |
| Terminal | Brass with gold plating |
| Spring | Piano wires |
| Rubber washer | NBR |
