Bring your project to life.

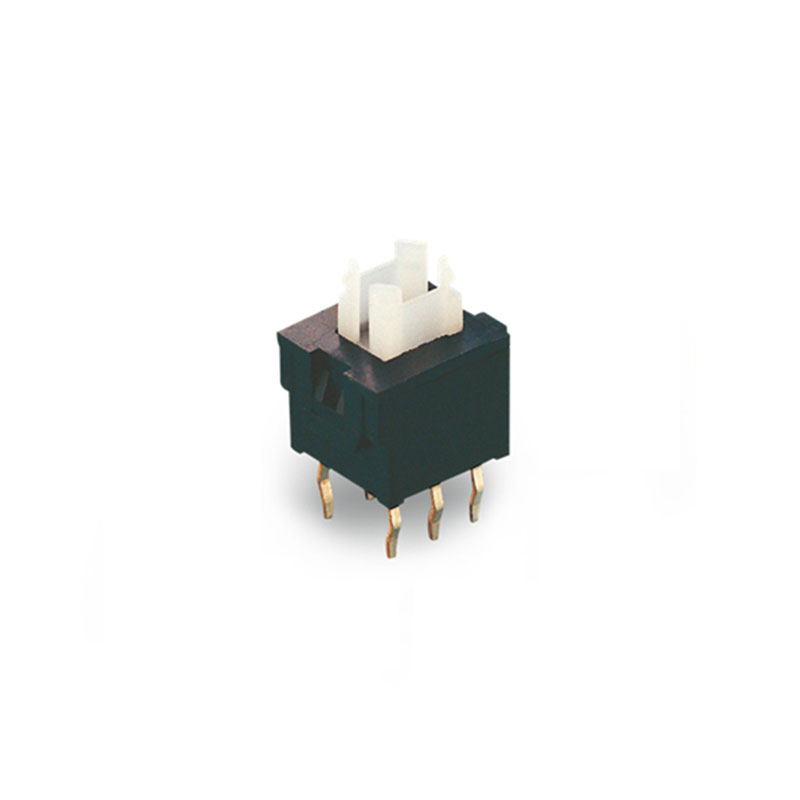

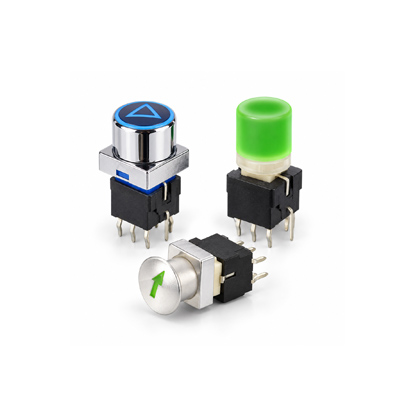

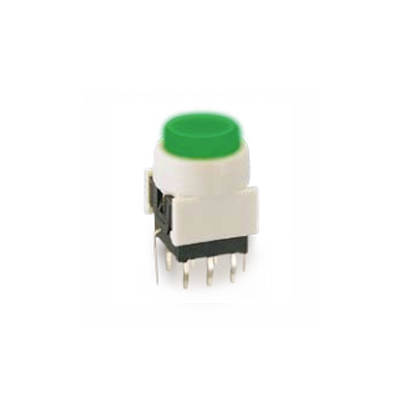

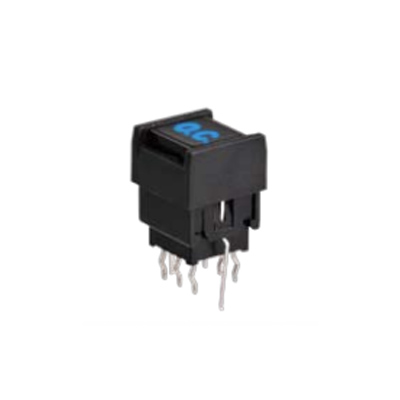

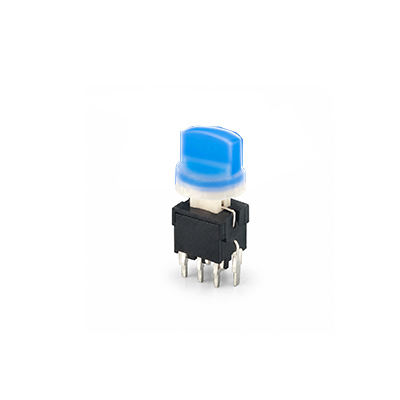

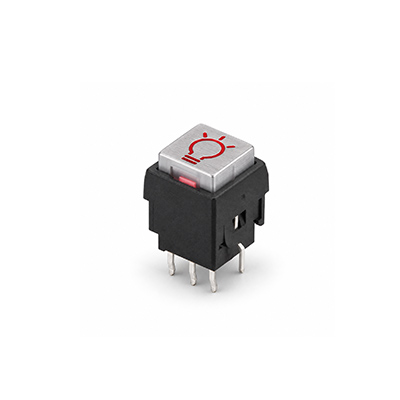

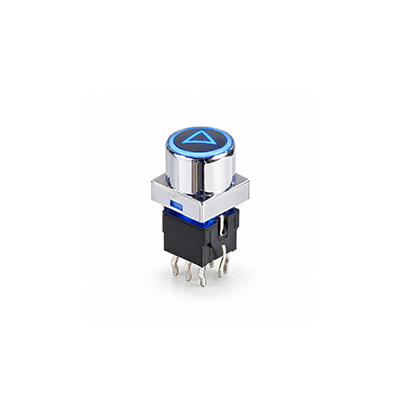

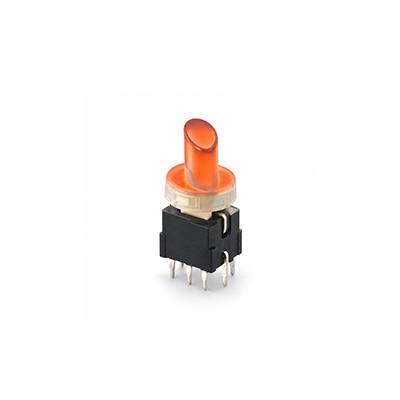

The PB613 Series is a compact, PCB-mounted illuminated push button switch for audio, home automation, communications equipment and more. Offering a wide choice of switch functions, LED colours and cap styles.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Product Material Options | |

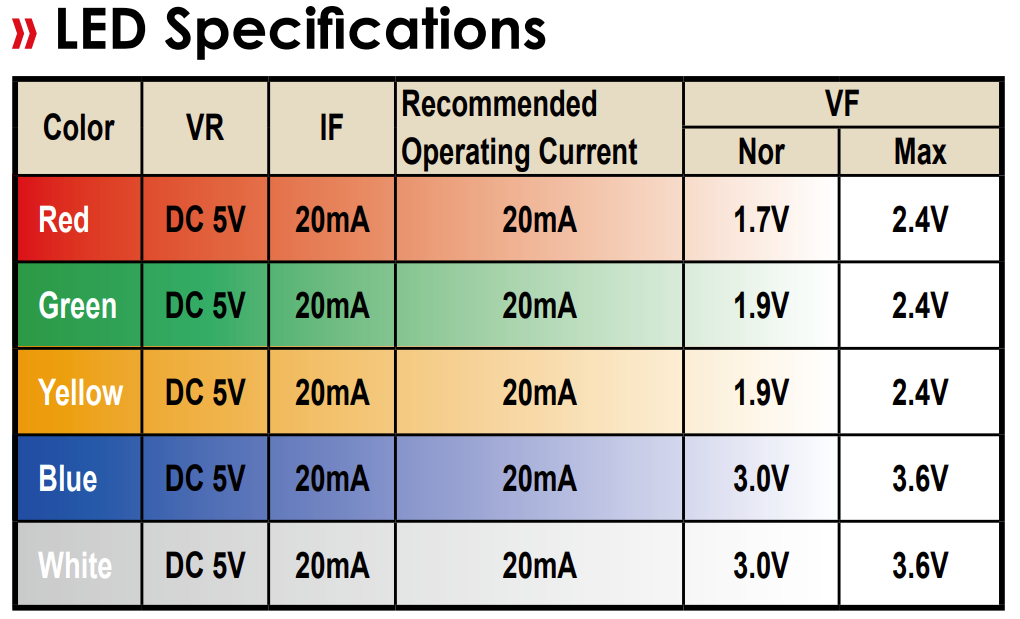

| Single LED options | |
| Multi-Colour LED Options | (BA) Blue/Amber, (R/PG) Red/Pure Green, (WA) White/Amber, (WY) White/Yellow, (YG) Yellow/Green, Blue/Green, Blue/Orange, Green/red, Green/Yellow, (BB) Blue/Blue, (RB) Red/Blue, (RG) Red/Green, (RR) Red/Red, (RY) Red/Yellow |
| Rating | 0.1A 30VDC |
| Insulation Resistance | 100MΩ Min (at 500 VDC) |
| Dielectric Strength | AC 500V (50/60 Hz for 1 minute) |
| Contact Resistance | 50mΩ Max. (Initial) |
| Electrically Life | 10,000 Cycles Min |
| Ambient Temperature | -10°C~ +80°C |
| Operating Force | 150 ± 100gf (Momentary)
250 ± 100gf (Alternate) 200 ± 100gf (Momentary With Click) |
