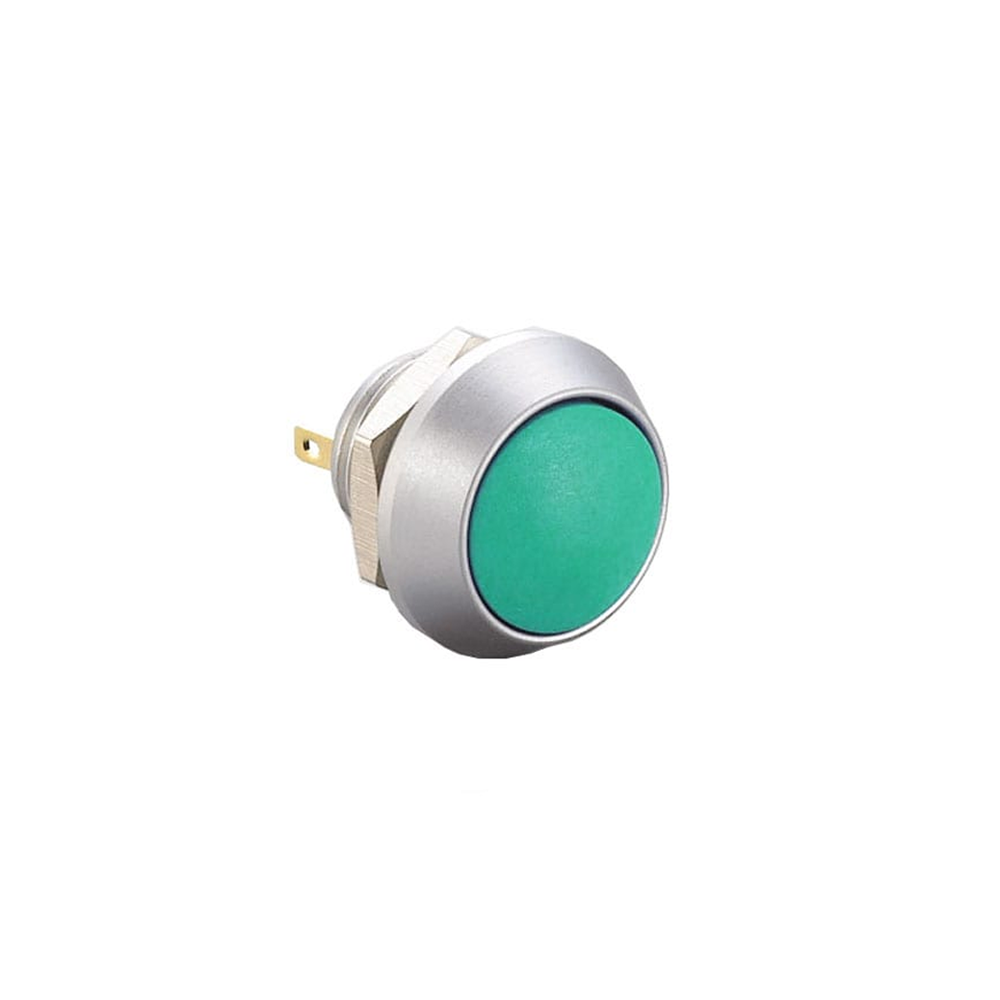

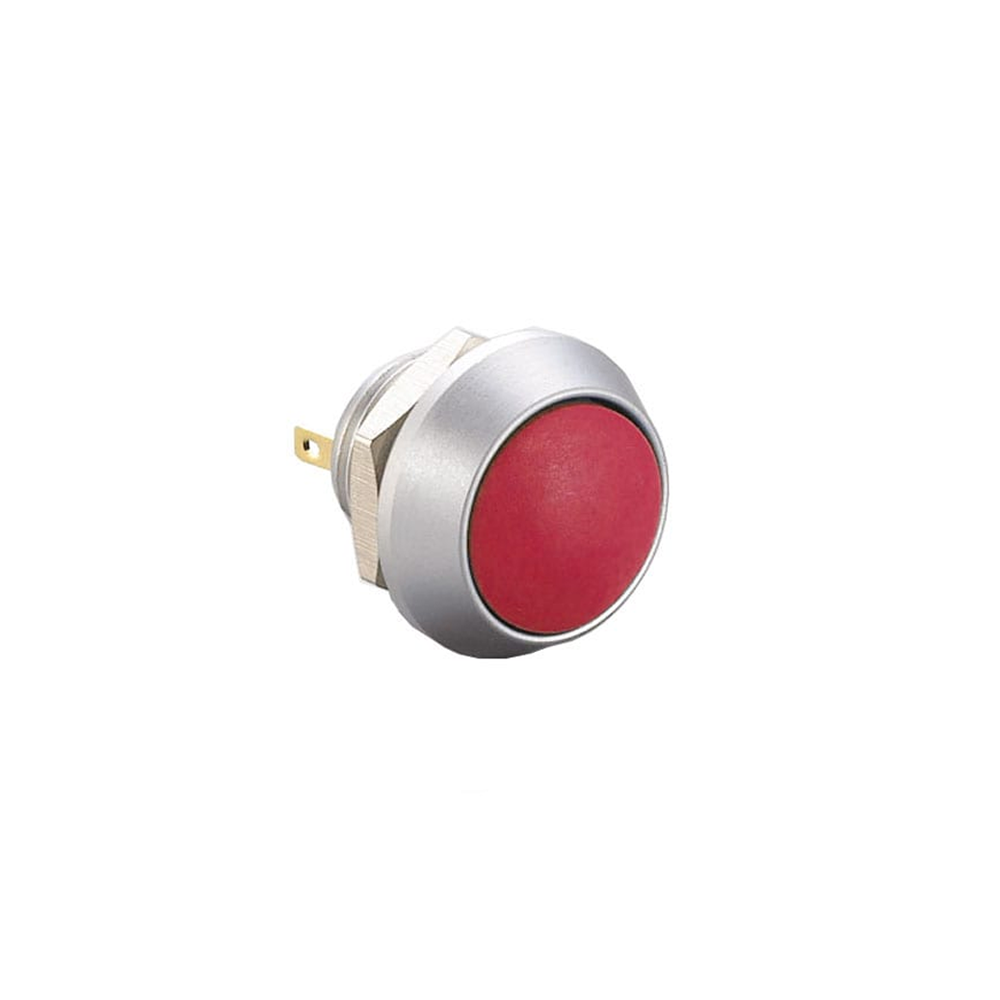

12mm panel mount push button switch, ball head, IP65 rated, rjs electronics ltd

12mm push button switch without LED Illumination, Anti-vandal, Push button metal switches, flat head. RJS Electronics Ltd.

12mm push button switch without LED Illumination, Anti-vandal, Push button metal switches, flat head. RJS Electronics Ltd.

RJS1N1-12-B-(COLOUR)-65J

Ø 12mm antivandal switch with no LED illumination.

Key Features:

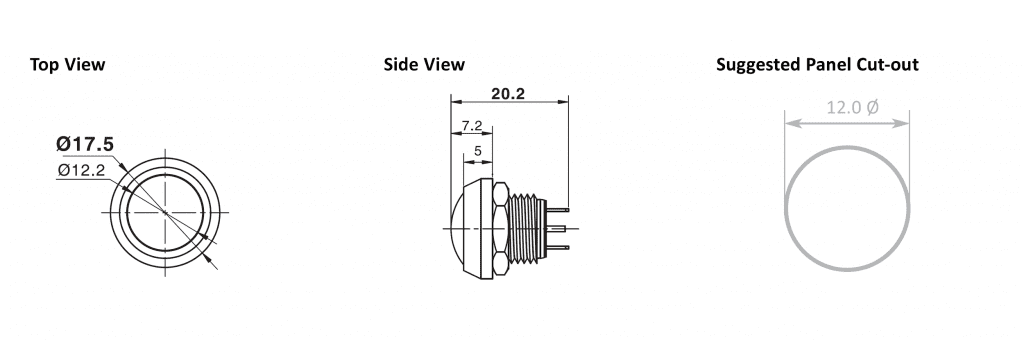

Ø 12mm Panel cut out
Momentary
Non-illuminated
IP658 rated (from the front)
SPDT

Applications:

Automotive
Boat building & Marine
Security
Door entry
Medical

Additional information

Product Series	RJS1N1, RJS1N1-12
Function	Push Button Switch, Momentary Switch
Panel Cut-Out Diameter	Ø 12mm
IP Rating	IP65 (front)
Switch Action	push to make
Configuration	1NO (SPST) [push to make]
# NO Contacts	1
