| Product Series | |
|---|---|
| Function | |
| Illumination | |
| Cap / Actuator Shape | |
| Diameter (mm) | |
| Terminal Options | |
| Configuration |

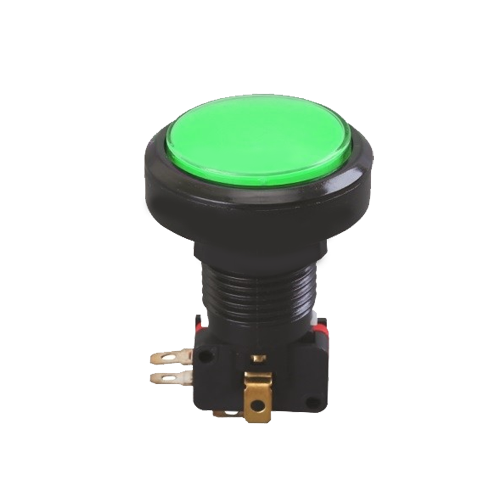

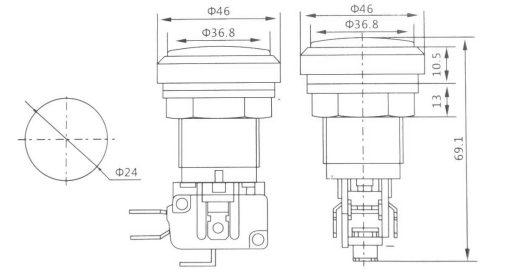

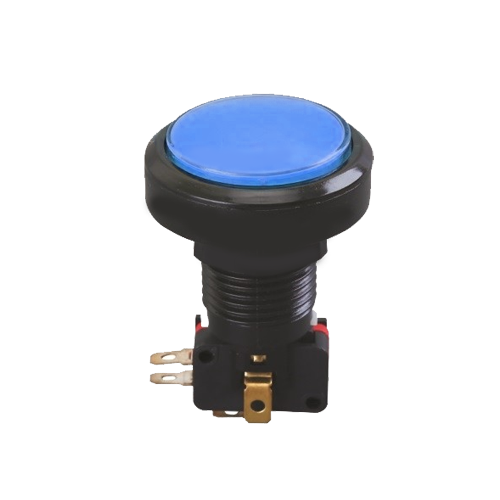

Illuminated gaming button, often referred to as an ‘arcade button’. It is designed to be mounted onto a panel, with a Ø24mm cut-out size. The button has a round actuator with momentary function.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Illumination | |
| Cap / Actuator Shape | |
| Diameter (mm) | |
| Terminal Options | |
| Configuration |
|
RJS-GME Series Specification
|
|
| Rating | 5A 250VAC |
| Insulation Resistance | 100MΩ Min (at 500VCD) |
| Dielectric Strength | 1500VAC (1 minute) |
| Contact Resistance | ≤30MΩ |
| Electrical Life | ≥10,000 Cycles |
| Operating Temperature | -25°c~ +85°c |
| Function | OFF-(ON) |
| OEM or ODM | Available |
