RJS-GME7~12V-D

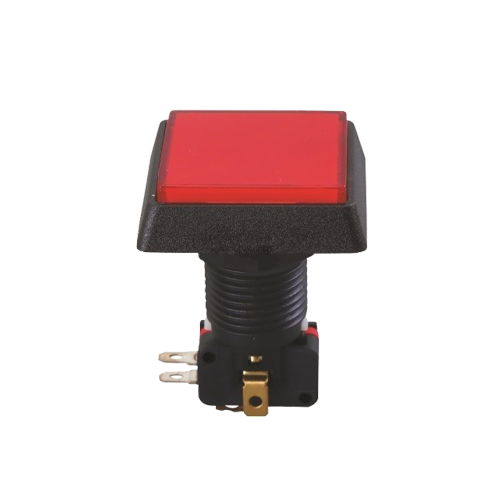

Square gaming arcade button designed for panel mounting with a 24mm diameter cut out. Momentary function, with full LED illumination. The button has a 1NO/1NC contact configuration, meaning that it has a normally open and a normally closed contact.

Key Features:

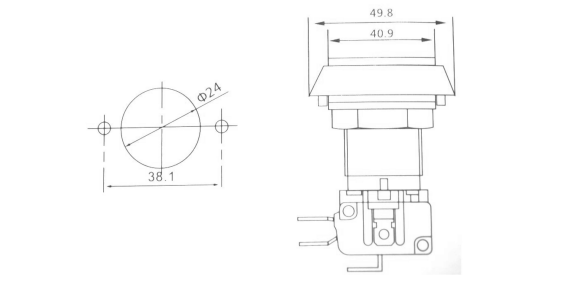

  • Ø24mm panel cut out
  • Momentary function
  • Full LED illumination
  • 1NO / 1NC contact configuration
  • Square button

Data Sheet

Product Series

Function

,

Illumination

Cap / Actuator Shape

Diameter (mm)

Terminal Options

,

Configuration



RJS-GME Series Specification


Rating 5A 250VAC
Insulation Resistance 100MΩ Min (at 500VCD)
Dielectric Strength 1500VAC (1 minute)
Contact Resistance ≤30MΩ
Electrical Life ≥10,000 Cycles
Operating Temperature -25°c~ +85°c
Function OFF-(ON)
OEM or ODM Available
