| Product Series | |
|---|---|
| Panel Cut-Out Diameter | |
| Function | |
| IP Rating | |
| Operating Temperature | -25~+60℃ |
| Maximum Voltage | 250V AC/DC |

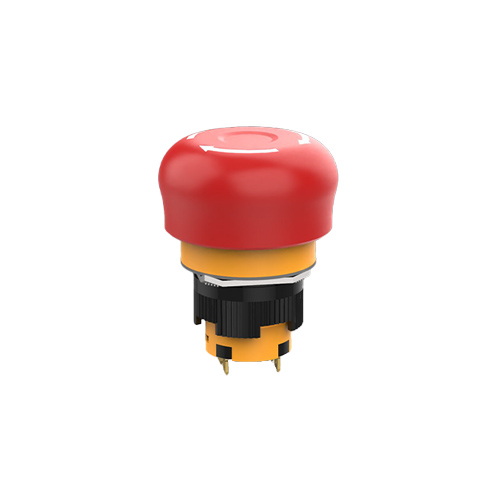

Emergency stop switch (Estop) with S type mushroom head style actuator. Designed with a 16mm panel cut out and with an IP65 rating (from the front). Our Emergency Stop Switches provide quick and effective emergency shutdown capabilities. Safety and efficiency combined in one compact solution.
Key Features:
| Product Series | |
|---|---|
| Panel Cut-Out Diameter | |
| Function | |
| IP Rating | |
| Operating Temperature | -25~+60℃ |
| Maximum Voltage | 250V AC/DC |
| Operating temperature | -25~+60℃ |
| Operating humidity | 45~85%RH |
| Degree of protection | IP65 |
| Maximum voltage | 250V AC/DC |
| Thermal current | 3A |
| Maximum applicable load | 5V AC/DC, 1mA |
| Contact configuration | Gold-plated silver |
| Terminal style | 110 Solder/quick connect |
| Soldering temperature | 310~350℃ |
| Installation category | Class III, Distribution and Control Level |
| Installation limit height | 2000M above sea level |
| Impact resistance | 150m/S² 1000m/S² |
| Vibration resistance | 50Hz ~1.2mm |
| Mechanical life | 1×105 |
| Rated operating voltage/current | AC-15：0.75A/250V DC-13：1A/30V |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100MΩ（500VDC） |
| Withstand voltage | ≥2500VAC |
| Electrical life | 1×105 |
