RJS-SDE-2, bigger LCD screen, 36 pulses, 360 rotary encoder, push button, push to select, 240 x 240 px, full colour, programmable switch, rotary switches, RJS Electronics Ltd

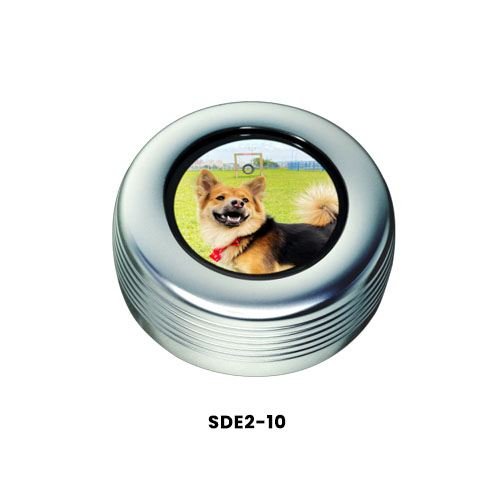

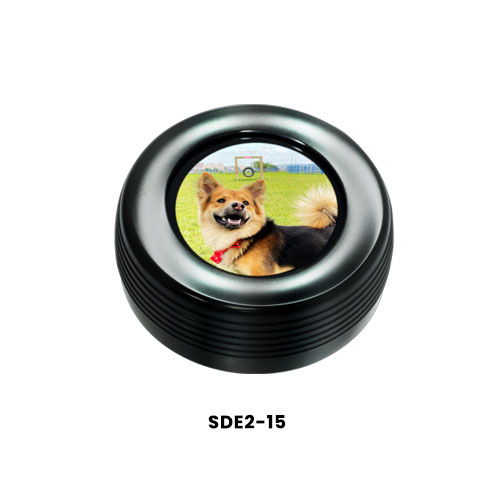

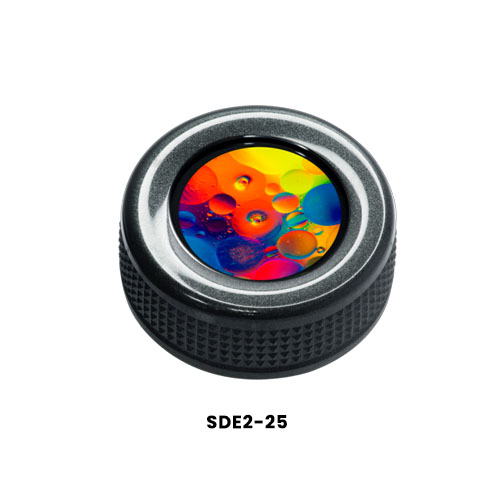

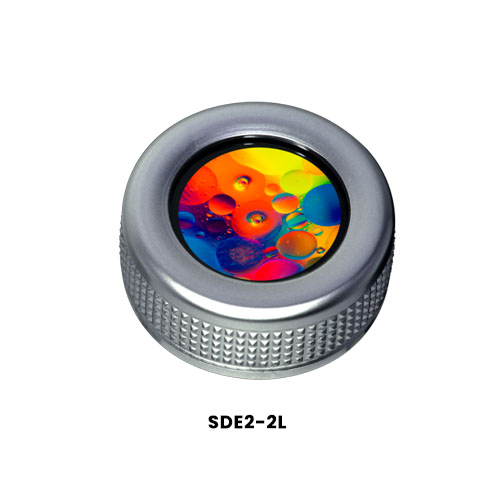

RJS-SDE-2

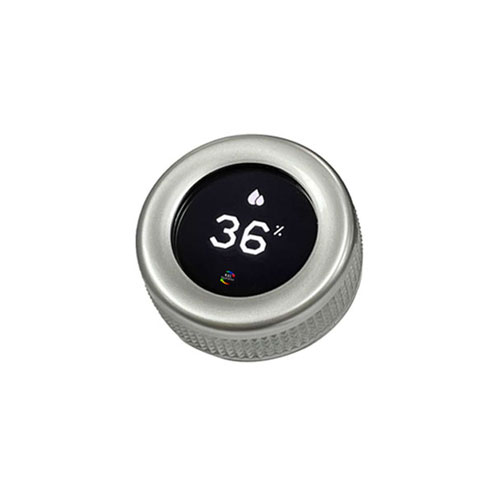

This multifunctional Programmable Navigation Switch features a 1.28″ LCD display with a controllable backlight, plus a rotary encoder and push button function. It is a low profile switch and has an SPI interface and an IP65 rating (from the front).

Key Features:

Momentary function
Low Profile Switch 0.5mm +/-0.3mm
Multifunctional and fully programmable
Controllable backlight
Additional features: LCD display, Rotary Encoder and Push Button switch
1.28″ full circle LCD
The LCD display is controlled through an SPI-interface.
IP65 rated (front)
Custom colours available* subject to MOQ

Product Series	RJS-SDE2
Function	LCD Display, Push Button Switch, Encoder
IP Rating	IP65 (front)

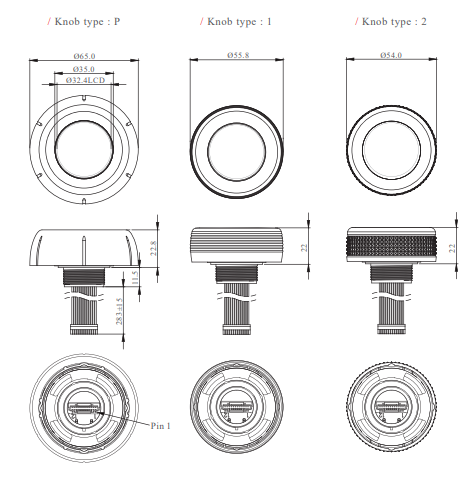

Cap / Actuator Shape	Round
Switch Travel	0.5mm +/-0.3mm
Interface Type	SPI (Serial Peripheral Interface) Mode
Resolution	240(H)xRGBx204(V) dots

RJS-SDE2 Series Display
Size	1.28inch circle TFT
DriverIC	GC9A01
Interface type	SPI (serial peripheral interface)
Power supply	3.3V
Resolution	240RGB(H)x240(V)
Display colour	Full colour, 262k(max)
Luminance(cd/m2)	400(cd/m2)
Backlight type	White LED

RJS-SDE2 Series Encoder
Transmissive optical sensor power supply	5V
Output signal	HIGH & LOW
Resolution	36 step per revolution
Operating life	C.W 100,000 cycles min C.C.W 100,000 cycles min

RJS-SDE2 Series Switch
Contact rating	50mA, 12VDC
Resolution	05.+0.3mm
Operating life	100,000 cycles min
Operation temperature	-20°C~70°C
IP code	IP65

RJS-SDE2 Series Materials
Knob	Polyamide (PA)
Lens	Polycarbonate (PC)
Base	Polycarbonate (PC)
Washer	NBR
Nuts	Polyamide (PA)
