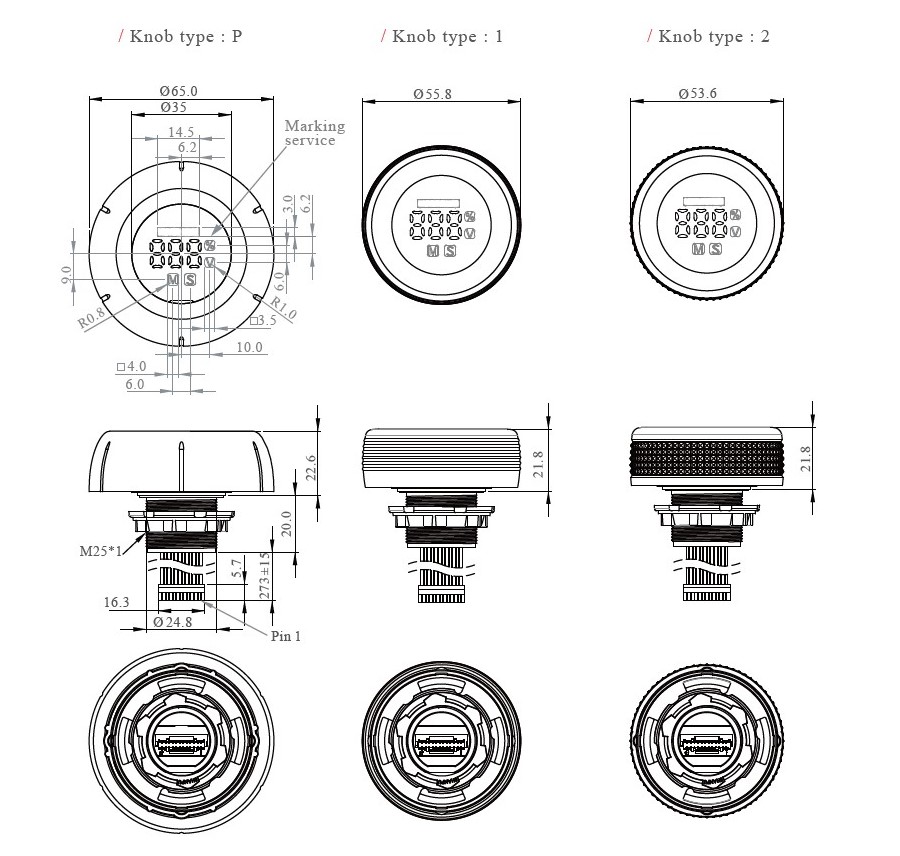

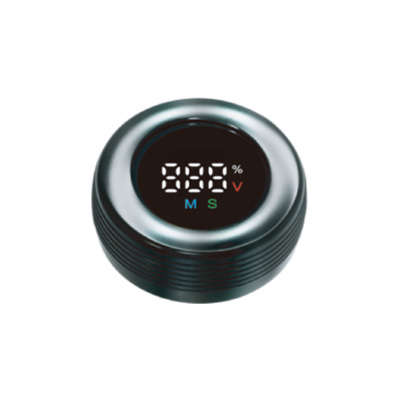

This Programmable Navigation Switch features a rotary encoder and push button switch with a white LED backlight digital display. It has a 25mm panel cut out and an IP65 rating.
Key Features:
| Function | |
|---|---|
| Panel Cut-Out Diameter | |
| IP Rating | |
| Illumination | |
| Configuration | |
| Cap / Actuator Shape |
| Power Supply | 5V |
| Output Signal | HI/LO |

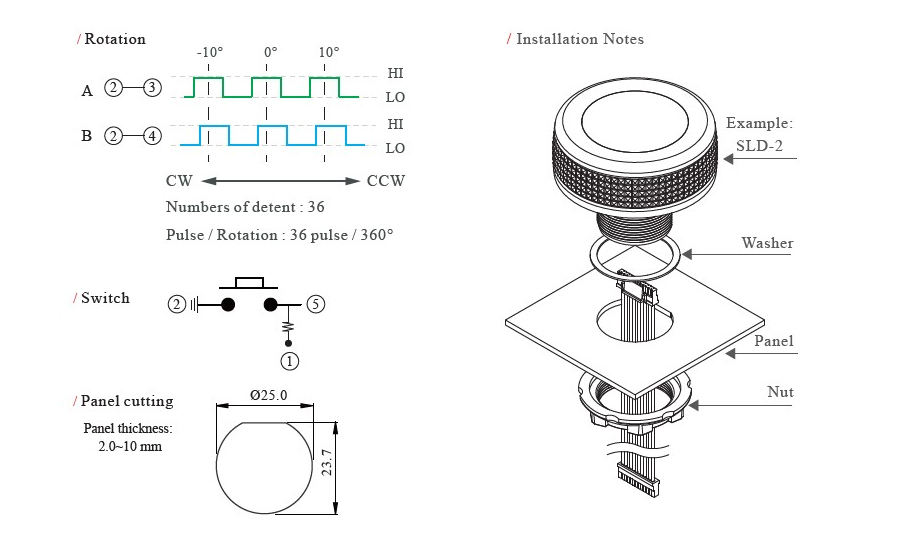

| Revolution | 36 step per revolution |
| Operating Life | 100,000 cycles min. |
| Operating Force | 800 ± 300gf |
| Total Travel | 0.3 ± 0.15mm |
| Insulation Resistance | 100M Ohm Min. |
| Dielectric strength | 250V AC/Min |
| Operation Temperature | -20°C~ 80°C |
