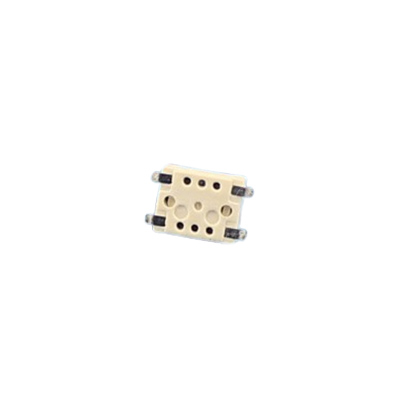

On/off electronic small tactile switch: a device that is activated only when the button is pressed or when there is a noticeable change in pressure. This switch is designed specifically for miniature devices, applications that require feedback, and digital switching.
Key Features
| Illumination | |
|---|---|
| Configuration | |
| Orientation | |
| Product Series | |
| Function |
| Type: | Snap-in | Operating force: | 180/250/400gf |
| Operating Direction: | Top Push | Travel: | 0.25mm |
| Operating Life: | Over 100,000 cycles | Initial contact resistance: | 100mΩ max. |
| Stem color: | Silver | Operating Temperature: | -30℃~+85℃ |
| Stem height: | H=2.5mm | Series type: | SMD type |
| Rating (max.): | 50mA 12V DC | Rating (min.): | 10µA 1V DC |

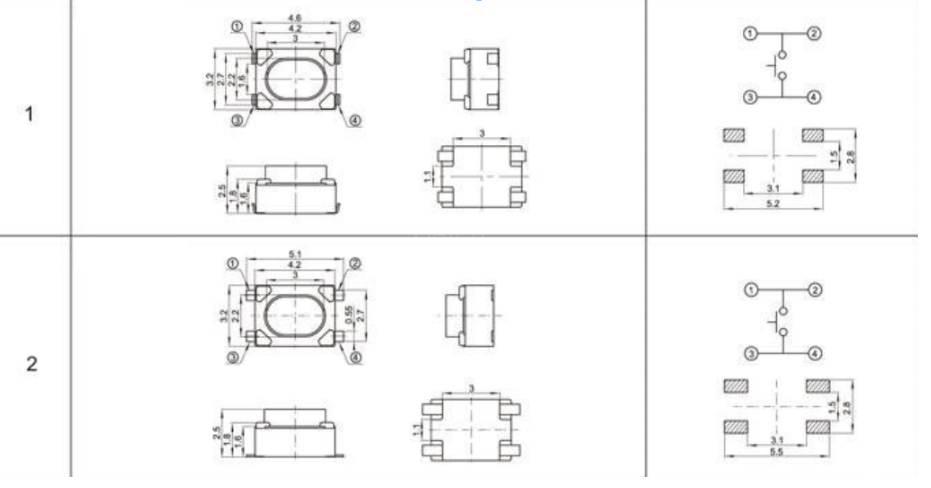

| SPQ: | 1,000pcs | Total Length: | 4.6mm/5,1mm |
