RJS102-19A-H~67J

19mm Anti Vandal Switch with No LED Illumination

Key Features:

Applications:

Configuration	1NC (SPST) [push to break], 1NO (SPST) [push to make], 1NO1NC (SPCO) [change over], 2NC (DPST) [push to break], 2NO (DPST) [push to make], 2NO2NC (DPCO) [change over]
Terminal Options	Solder Lug Terminals, Pushfit Connector
Illumination	non-illuminated
Cap / Actuator Shape	High Head (Raised), Round
Function	Latching Switch

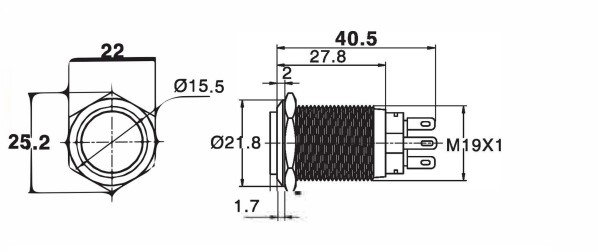

Panel Cut-Out Diameter	Ø 19mm
# NC Contacts	1, 2
# NO Contacts	1, 2
IP Rating	IP67 (front)
Product Series	RJS102-19L / RJS202-19L
Switch Travel	2-3mm
Switch Action	change over
