19mm metal push button switch, ring LED illuminated, RGB switches, anti vandal switch, panel mount, LED SWITCHES, RJS Electronics Ltd

RJS102-19L(A)-B-R~67J

This 19mm Anti Vandal Switch features ring LED illumination and a domed head. It is IP67 rated (from the front) and can have a momentary or latching function.

Key Features:

  • Ø 19mm panel cut out
  • Single pole version
  • Momentary/latching function
  • Ring LED illumination
  • Single/bi-colour/RGB LED options
  • IP67 rated (from the front)
  • SPDT/DPST
  • 3V-24V DC LED
Data Sheet
IP Rating

Configuration

, , , , ,

Illumination

Cap / Actuator Shape

Function

# NO Contacts

,

# NC Contacts

,

Product Series

Switch Travel

Switch Action

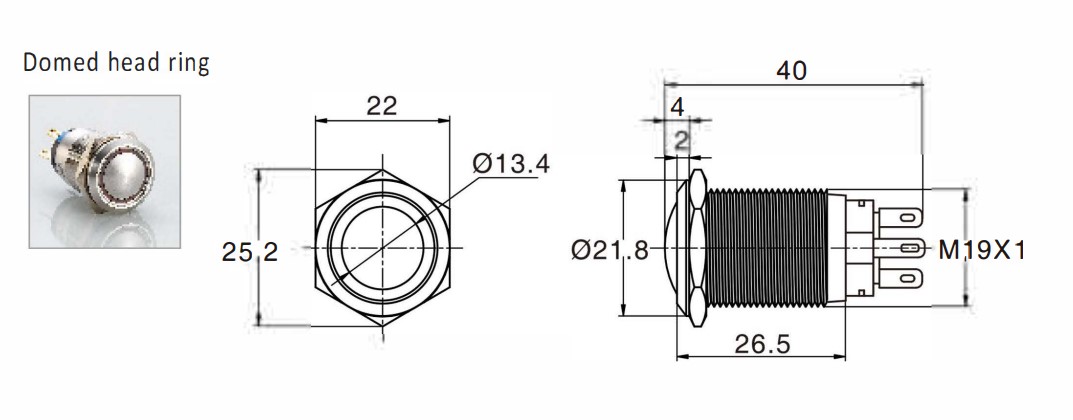

drawing for RJS102-19L(A)-B-R~67J antivandal push button switch, rjs electronics ltd
