19mm metal push button switch, ring LED illuminated, RGB LED, antivandal switch, panel mount, LED SWITCHES, RJS Electronics Ltd

RJS102-19LA-H-R~67J

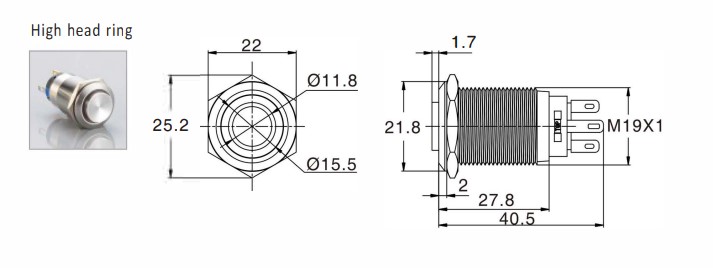

This 19mm Anti Vandal Switch features a high head with ring LED illumination. It has a momentary or latching function and is IP67 rated (from the front) to protect against dust and water.

Key Features:

Ø 19mm panel cut out
Solder-lug terminals
Latching function
Ring LED illumination
Single/bi-colour/RGB LED options
IP67 rated (from the front)
SPDT
3V-24V DC LED

Product Series	RJS102-19L / RJS202-19L
Cap / Actuator Shape	Concave, High
Switch Circuit	SPDT (3 pin), DPDT (8 pin)
Switch Action	change over, push to break, push to make
Panel Cut-Out Diameter	Ø 19mm
Function	Latching Switch
Bezel Shape	Chamfered, Round
IP Rating	IP67 (front)
Product Colour	Matt Black, Shiny Silver
Switch Travel	2-3mm
Product Material Options	304SS, Anodised Aluminium, Brushed Steel, Metal, Nickel Plated Brass
Terminal Options	Solder Lug Terminals
Multi-Colour LED Options	(RGB) Red/Green/Blue

Latching

Brushed Steel
	5V Ring LED	12V Ring LED	24V Ring LED
Red LED Green LED Blue LED Red/Green LED RGB (+) RGB (-)	SPDT RJS102-19LA-H-R-R-BS-5V-67J RJS102-19LA-H-R-G-BS-5V-67J RJS102-19LA-H-R-B-BS-5V-67J RJS102-19LA-H-R-RG-BS-5V-67J RJS102-19LA-H-R-3A-BS-5V-67J RJS102-19LA-H-R-3C-BS-5V-67J	SPDT RJS102-19LA-H-R-R-BS-12V-67J RJS102-19LA-H-R-G-BS-12V-67J RJS102-19LA-H-R-B-BS-12V-67J RJS102-19LA-H-R-RG-BS-12V-67J RJS102-19LA-H-R-3A-BS-12V-67J RJS102-19LA-H-R-3C-BS-12V-67J	SPDT RJS102-19LA-H-R-R-BS-24V-67J RJS102-19LA-H-R-G-BS-24V-67J RJS102-19LA-H-R-B-BS-24V-67J RJS102-19LA-H-R-RG-BS-24V-67J RJS102-19LA-H-R-3A-BS-24V-67J RJS102-19LA-H-R-3C-BS-24V-67J
Red LED Green LED Blue LED Red/Green LED RGB (+) RGB (-)	DPDT RJS202-19LA-H-R-R-BS-5V-67J RJS202-19LA-H-R-G-BS-5V-67J RJS202-19LA-H-R-B-BS-5V-67J RJS202-19LA-H-R-RG-BS-5V-67J RJS202-19LA-H-R-3A-BS-5V-67J RJS202-19LA-H-R-3C-BS-5V-67J	DPDT RJS202-19LA-H-R-R-BS-12V-67J RJS202-19LA-H-R-G-BS-12V-67J RJS202-19LA-H-R-B-BS-12V-67J RJS202-19LA-H-R-RG-BS-12V-67J RJS202-19LA-H-R-3A-BS-12V-67J RJS202-19LA-H-R-3C-BS-12V-67J	DPDT RJS202-19LA-H-R-R-BS-24V-67J RJS202-19LA-H-R-G-BS-24V-67J RJS202-19LA-H-R-B-BS-24V-67J RJS202-19LA-H-R-RG-BS-24V-67J RJS202-19LA-H-R-3A-BS-24V-67J RJS202-19LA-H-R-3C-BS-24V-67J
Black Anodised Aluminium
	5V Ring LED	12V Ring LED	24V Ring LED
Red LED Green LED Blue LED Red/Green LED RGB (+) RGB (-)	SPDT RJS102-19LA-H-R-R-BLK-5V-67J RJS102-19LA-H-R-G-BLK-5V-67J RJS102-19LA-H-R-B-BLK-5V-67J RJS102-19LA-H-R-RG-BLK-5V-67J RJS102-19LA-H-R-3A-BLK-5V-67J RJS102-19LA-H-R-3C-BLK-5V-67J	SPDT RJS102-19LA-H-R-R-BLK-12V-67J RJS102-19LA-H-R-G-BLK-12V-67J RJS102-19LA-H-R-B-BLK-12V-67J RJS102-19LA-H-R-RG-BLK-12V-67J RJS102-19LA-H-R-3A-BLK-12V-67J RJS102-19LA-H-R-3C-BLK-12V-67J	SPDT RJS102-19LA-H-R-R-BLK-24V-67J RJS102-19LA-H-R-G-BLK-24V-67J RJS102-19LA-H-R-B-BLK-24V-67J RJS102-19LA-H-R-RG-BLK-24V-67J RJS102-19LA-H-R-3A-BLK-24V-67J RJS102-19LA-H-R-3C-BLK-24V-67J
Red LED Green LED Blue LED Red/Green LED RGB (+) RGB (-)	DPDT RJS202-19LA-H-R-R-BLK-5V-67J RJS202-19LA-H-R-G-BLK-5V-67J RJS202-19LA-H-R-B-BLK-5V-67J RJS202-19LA-H-R-RG-BLK-5V-67J RJS202-19LA-H-R-3A-BLK-5V-67J RJS202-19LA-H-R-3C-BLK-5V-67J	DPDT RJS202-19LA-H-R-R-BLK-12V-67J RJS202-19LA-H-R-G-BLK-12V-67J RJS202-19LA-H-R-B-BLK-12V-67J RJS202-19LA-H-R-RG-BLK-12V-67J RJS202-19LA-H-R-3A-BLK-12V-67J RJS202-19LA-H-R-3C-BLK-12V-67J	DPDT RJS202-19LA-H-R-R-BLK-24V-67J RJS202-19LA-H-R-G-BLK-24V-67J RJS202-19LA-H-R-B-BLK-24V-67J RJS202-19LA-H-R-RG-BLK-24V-67J RJS202-19LA-H-R-3A-BLK-24V-67J RJS202-19LA-H-R-3C-BLK-24V-67J
