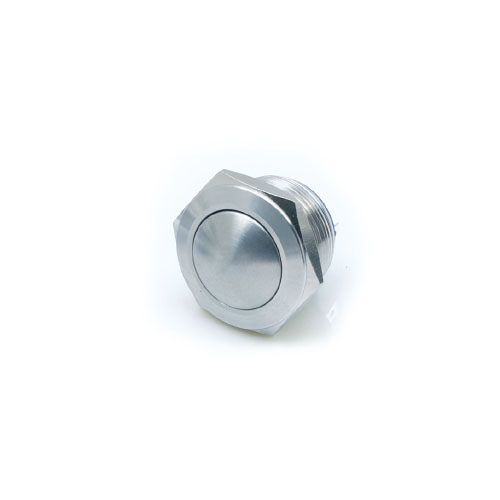

Anti vandal push button switch, domed actuator, rjs electronics ltd

RJS1N1-19-B~65Q

19mm Anti Vandal Switch Non-Illuminated

Key Features:

Ø 19mm Panel cut out
Momentary
Non-illuminated
IP65 rated (from the front)
SPDT
3V-24V DC LED

Applications:

Automotive
Boat building & Marine
Security
Door entry
Medical

Additional information

Product Series	RJS1N1-19L
Configuration	1NO (SPST) [push to make]
Terminal Options	Solder Lug Terminals
Illumination	non-illuminated
Cap / Actuator Shape	Ball Haed / Domed (Convex)
Panel Cut-Out Diameter	Ø 19mm
Function	Momentary Switch
IP Rating	IP65 (front)
Switch Action	push to make
# NO Contacts	1
