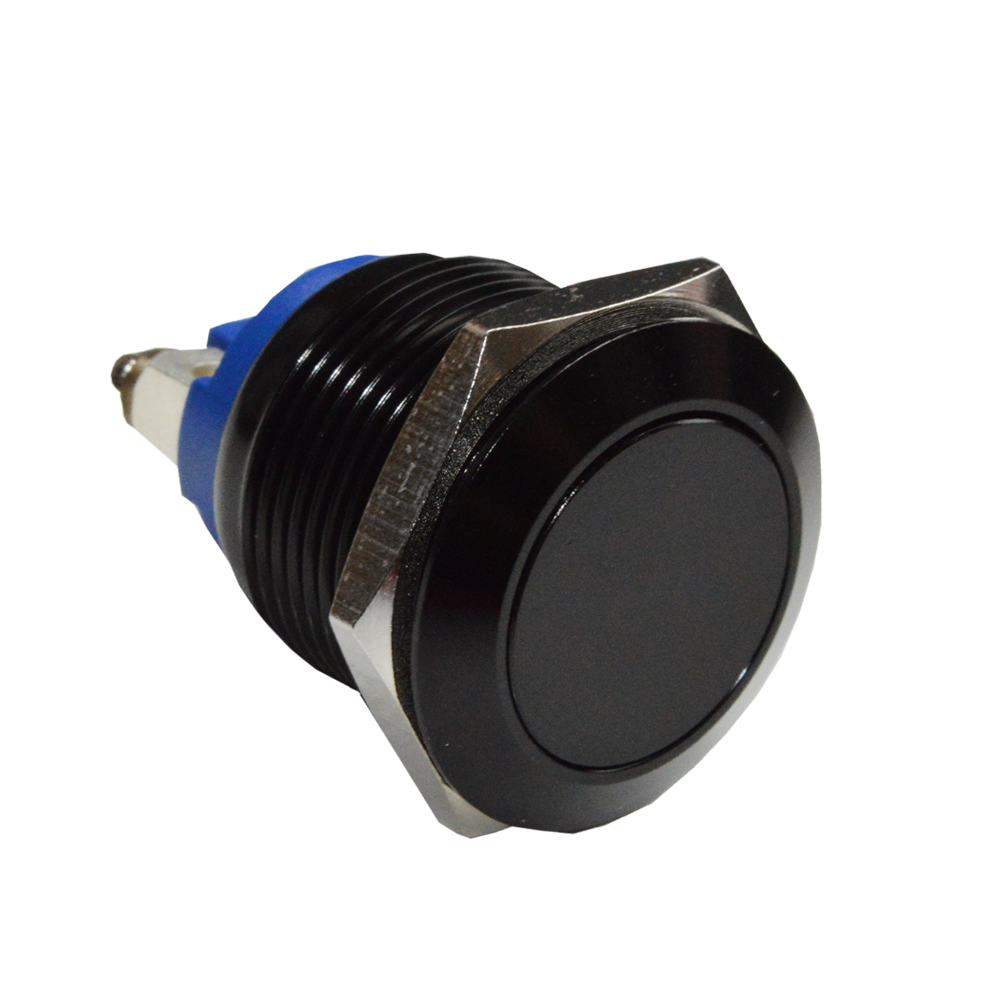

19mm metal push button switch, non-illuminated, antivandal switch, panel mount, RJS Electronics Ltd

19mm metal anti vandal push button switch with no illumination, screw terminals, black anodised aluminium finish, rjs electronics ltd

RJS1N1-19-F~67J

19mm Antivandal Switch with No LED Illumination

Key Features:

Ø 19mm Panel cut out
Momentary / Latching
Solder lug terminals
Non-Illuminated
IP67 rated (from the front)
SPDT/DPST

Applications:

Automotive
Boat building & Marine
Security
Door entry
Medical

Additional information

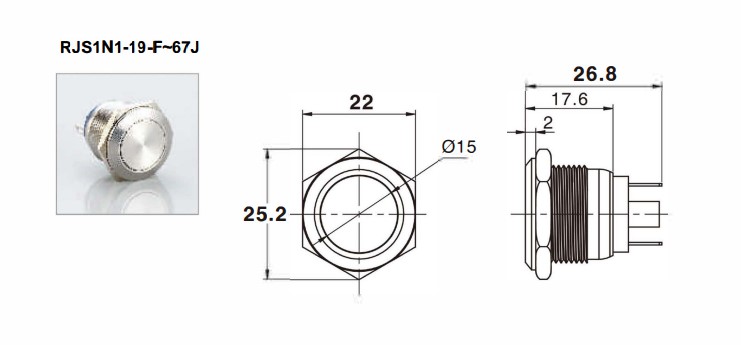

Drawing

IP Rating	IP67 (front)
Terminal Options	Screw Terminals, Solder Lug Terminals
Illumination	non-illuminated
Cap / Actuator Shape	Round
Function	Momentary Switch
Panel Cut-Out Diameter	Ø 19mm
Product Series	RJS1N1-19, RJS1N1S-19
Switch Action	push to make
# NO Contacts	1
