22mm metal push button switch, non-illuminated, antivandal switch, panel mount, RJS Electronics Ltd

RJS1N1-22-F~65Q

22mm Anti Vandal Switch, non-illuminated metal push button, IP65 rated (from the front), momentary function.

Key Features:

Ø 22mm Panel cut out
Momentary function
Non-Illuminated
IP65 rated (from the front)
1NO SPST

Additional information

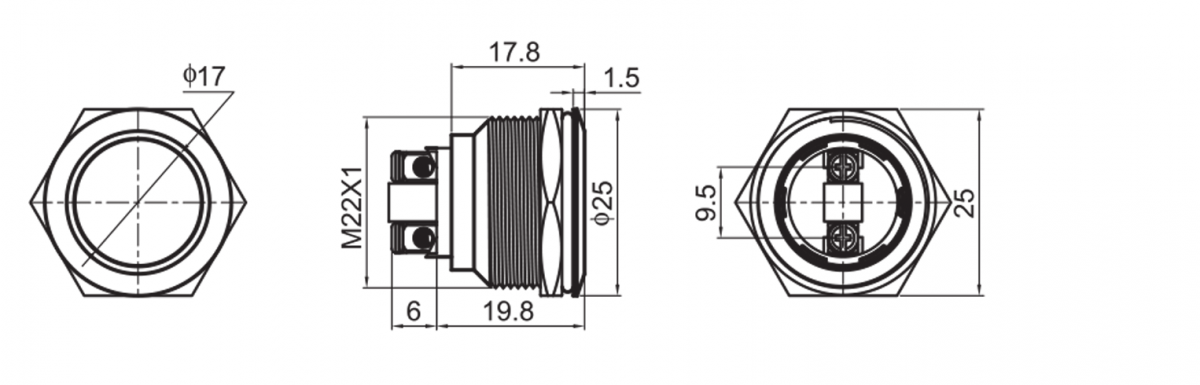

Drawing

Function	Momentary Switch
IP Rating	IP65 (front)
Configuration	1NO (SPST) [push to make]
Terminal Options	Solder Lug Terminals
Illumination	non-illuminated
Cap / Actuator Shape	Round
Panel Cut-Out Diameter	Ø 22mm
Product Series	RJS1N1-22
