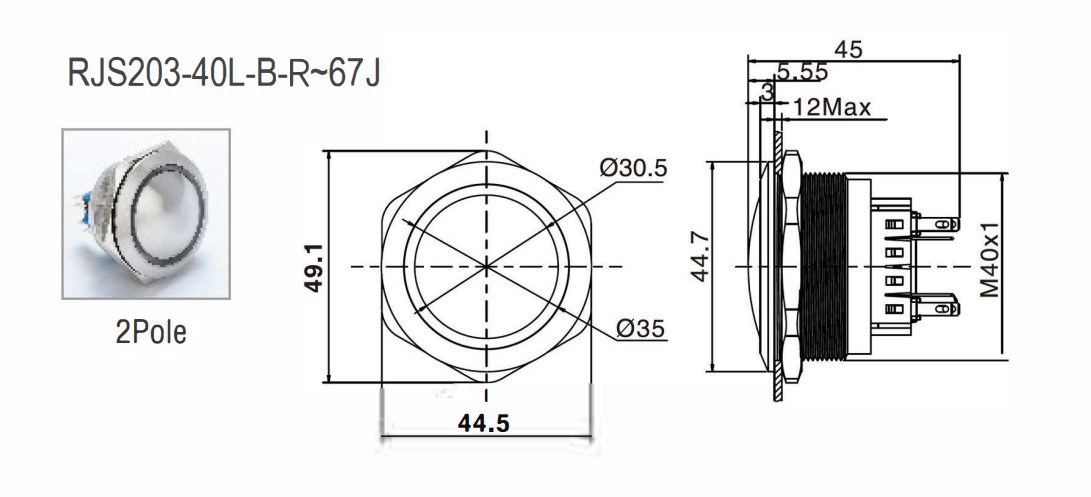

RJS203-40L(A)-B-R~67J

40mm Anti Vandal Switch with Ring LED Illumination

Key Features:

Applications:

Product Series	RJS203-40
IP Rating	IP67 (front)
Configuration	DPDT, SPDT
Terminal Options	Solder Lug Terminals, Pushfit Connector
Illumination	Ring LED Illumination
Cap / Actuator Shape	High Head (Raised), Round
Function	Push Button Switch, Momentary Switch, Latching Switch
Panel Cut-Out Diameter	Ø 40mm
# NC Contacts	1, 2
# NO Contacts	1, 2
Single LED options	Blue, Green, Orange (Amber), Red, White, Yellow
