RJSAS22E

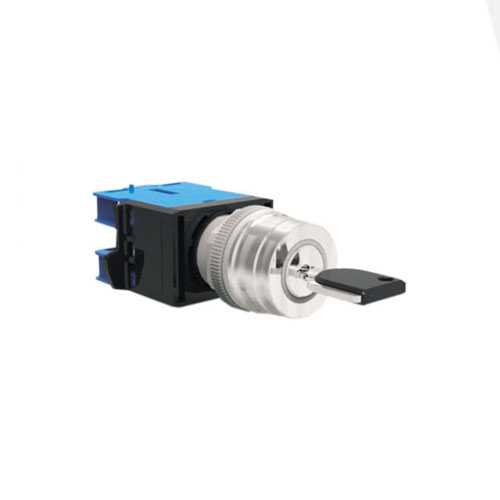

This panel mount Keylock Switch features a round cap, with a 3 position configuration and momentary or latching function. It is non-illuminated and IP65 rated (from the front).

Key Features:

  • 22mm panel cut out
  • Non-illuminated
  • 3 positions
  • Momentary/latching function
  • SPDT/DPDT
  • Terminal block mount

Data Sheet

Function

Terminal Options

Illumination

Cap / Actuator Shape

IP Rating

Configuration

,

Panel Cut-Out Diameter

Product Series

Mechanical Operations

Electrical Operations

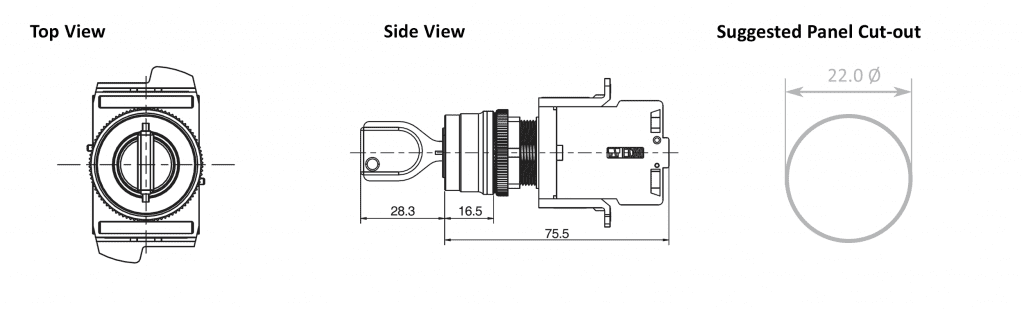

Drawing of RJSAS22E keylock switch, non illuminated, terminal block, rjs electronics ltd
