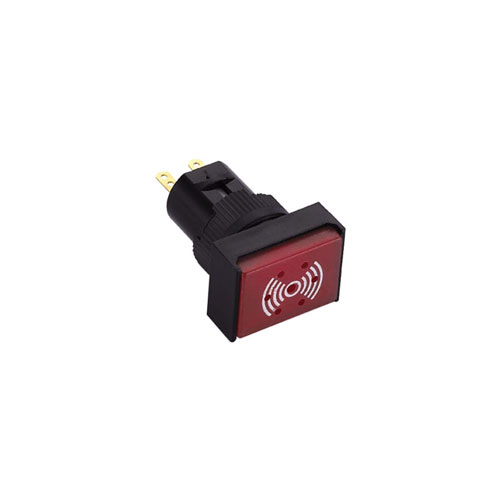

RJSPS16A Rectangular Buzzer

This 16mm Plastic Panel Mount Buzzer features a rectangular cap and full LED illumination. It has a continuous or discontinuous voice style and is IP65 rated (from the front).

Key Features:

  • Ø 16mm panel cut out
  • LED illuminated
  • Plastic
  • Rectangular
  • Solder lug terminals
  • IP65 rated (front)
Function

Product Series

Terminal Options

Illumination

Single LED options

Cap / Actuator Shape

Panel Cut-Out Diameter

Mechanical Operations

Electrical Operations

Configuration

,

Sound

Min: 10 dB
Max: 15 dB

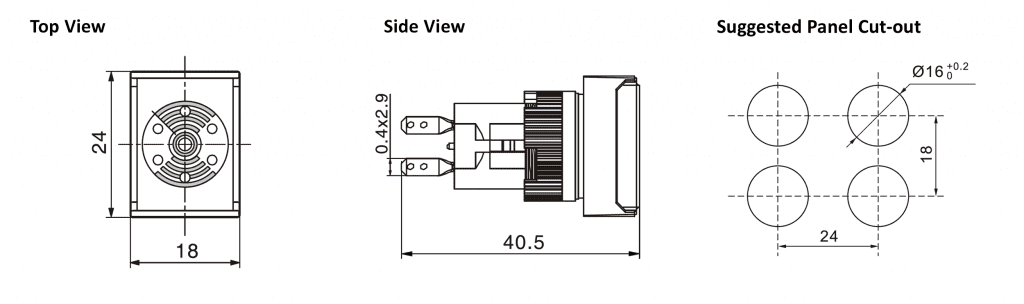

Drawing of RJSPS16A Rectangular Buzzer, Illuminated, Panel Mount Buzzer Switch, plastic switch which makes a buzzer sound. RJS Electronics Ltd.
