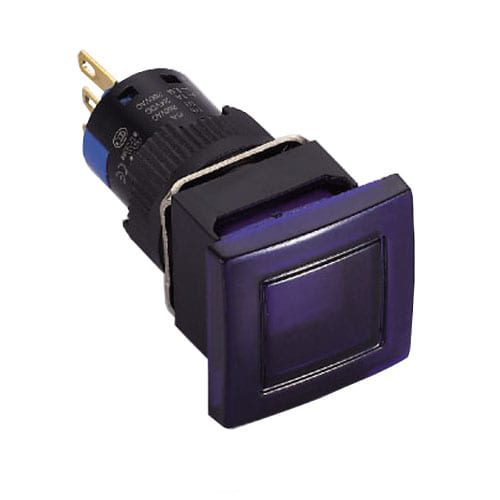

RJSPS16A Square Mushroom, 16mm plastic push button switch, sing led illumination, square mushroom cap,3v -24v, ip65 rated, spdt or dpdt, panel mount switch, LED SWITCHES, rjs electronics ltd

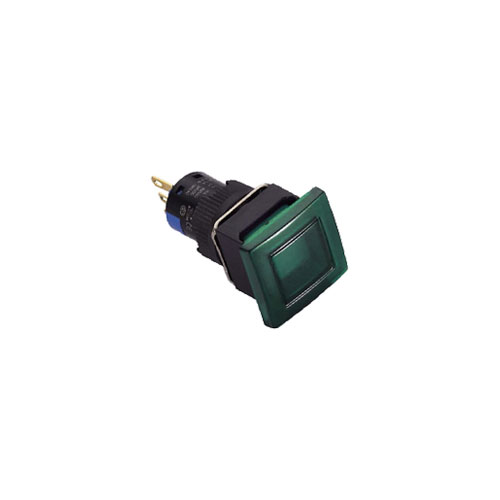

RJSPS16A Square Mushroom - Image 2

RJSPS16A Square Mushroom

This 16mm Plastic Push Button Switch features a square mushroom actuator and full LED illumination. It has a momentary or latching function and is IP65 rated (from the front).

Key Features:

Ø 16mm panel cut out
Momentary/latching function
Single LED options
Square mushroom
3V-24V DC LED
IP65 rated (from the front)
SPDT / DPDT

Additional information

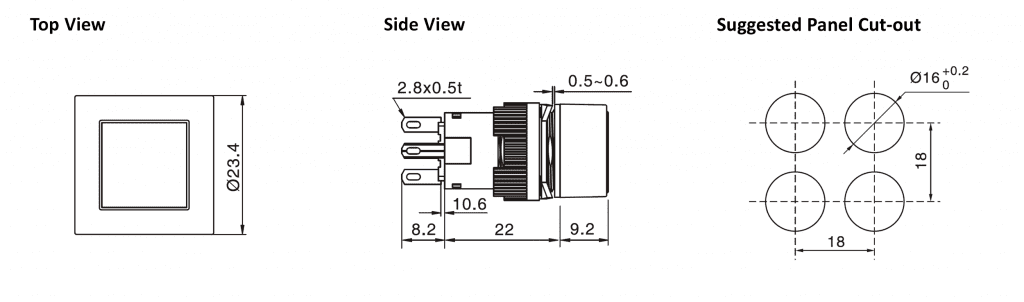

Drawings

Product Series	RJSPS16A
Function	Plastic Push Button Switch
Configuration	1NC (SPST) [push to break], 1NO (SPST) [push to make], 1NO1NC (SPCO) [change over], 2NC (DPST) [push to break], 2NO (DPST) [push to make], 2NO2NC (DPCO) [change over]
Illumination	non-illuminated, Full Illumination
Single LED options	Blue, Green, Red, White, Without LED, Yellow
Terminal Options	Solder Lug Terminals
Cap / Actuator Shape	Mushroom, Square
Product Material Options	Plastic
Panel Cut-Out Diameter	Ø 16mm
IP Rating	IP65 (front)
Mechanical Operations	1000000
Electrical Operations	100,000
