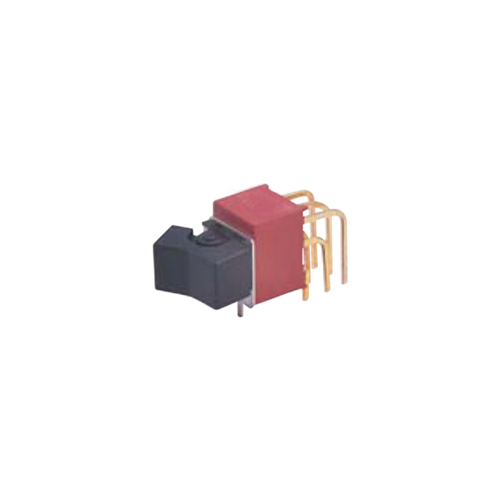

This Miniature PCB Rocker Switch features a momentary or latching function in 2 or 3 positions and a 3PDT configuration. It is IP67 rated and designed for right-angle mounting.
Key Features:
| Product Series | |
|---|---|
| Function | |
| IP Rating |
|
Contact Rating |
Dependent upon contact material |
|
Mechanical Life |
30,000 cycles |
|
Contact Resistance |
10 m Ω max. initial @ 2-4VDC 100mA |
|
Insulation Resistance |
1000 m Ω min. |
|
Dielectric Strength |
1000 vrms min. @ sea level |
|
Operating Temperature |
-30°C to 85°C |
