3MSeries - 3A - DPDT Rocker Switches, Panel Mount switches Panel Mount, momentary functioning Rocker switches by RJS Electronics Ltd, Rocker Switches, on off switch, plastic, metal, PCB, panel mount switch, available with and without LED illumination, IP rated, miniature sealed rocker and paddle switch, SPDT – 3PDT. RJS Electronics Ltd.

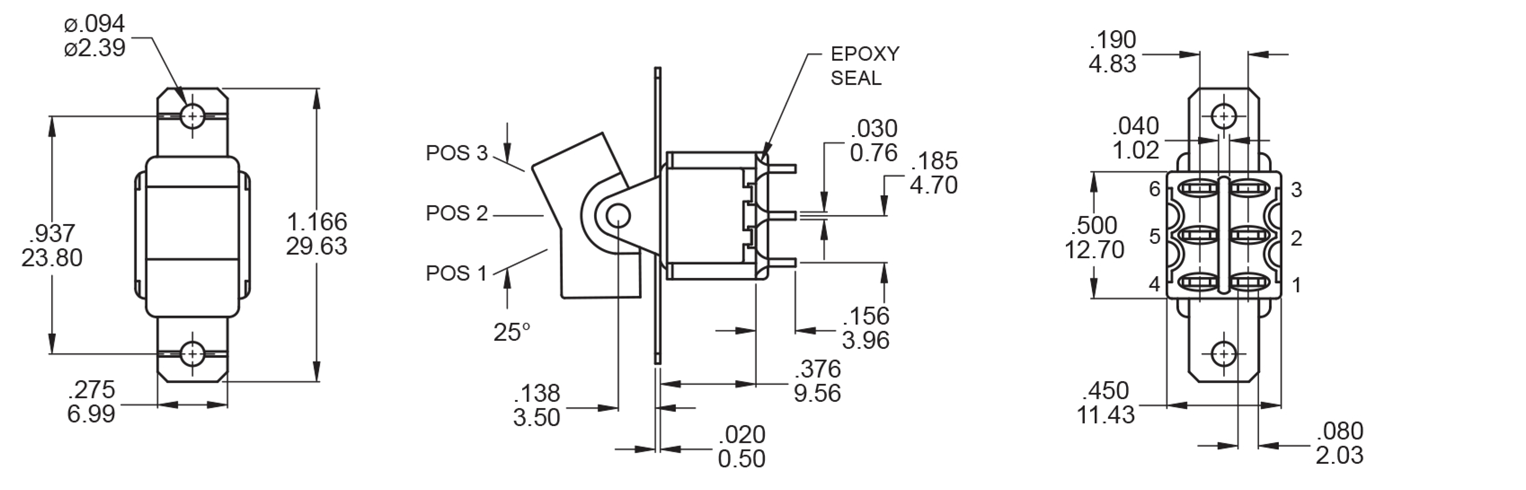

Rocker Switch: 3M-DPDT - Image 2
Rocker Switch: 3M-DPDT - Image 3
Rocker Switch: 3M-DPDT - Image 4

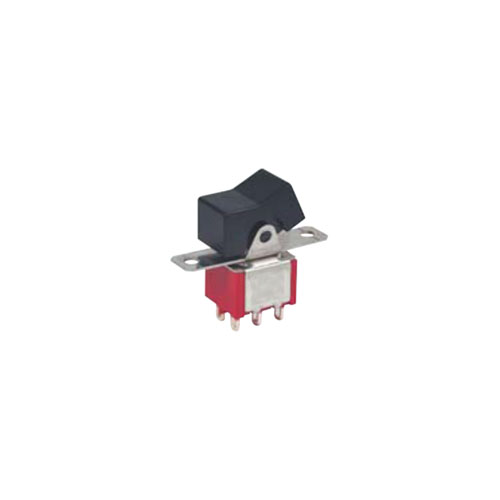

Rocker Switch: 3M-DPDT

This PCB Rocker Switch features a DPDT configuration and vertical mounting. You can select switches with a momentary or latching function and 2 or 3 positions.

Key Features:

  • Rocker switch
  • Vertical mount
  • 2 or 3 positions
  • Momentary or latching
  • DPDT
  • Contact rating up to 5A
  • Full 3M series
Data Sheet
Function

Illumination

Mechanical Operations

Product Series

Insulation Resistance:

1,000 MΩ min.
Dielectric Strength:

1,000 Vrms min.@sea level.
Contact Resistance:

10 m Ω max. initial @ 2-4VDC, 1 00mA for both silver and gold plated contacts.
