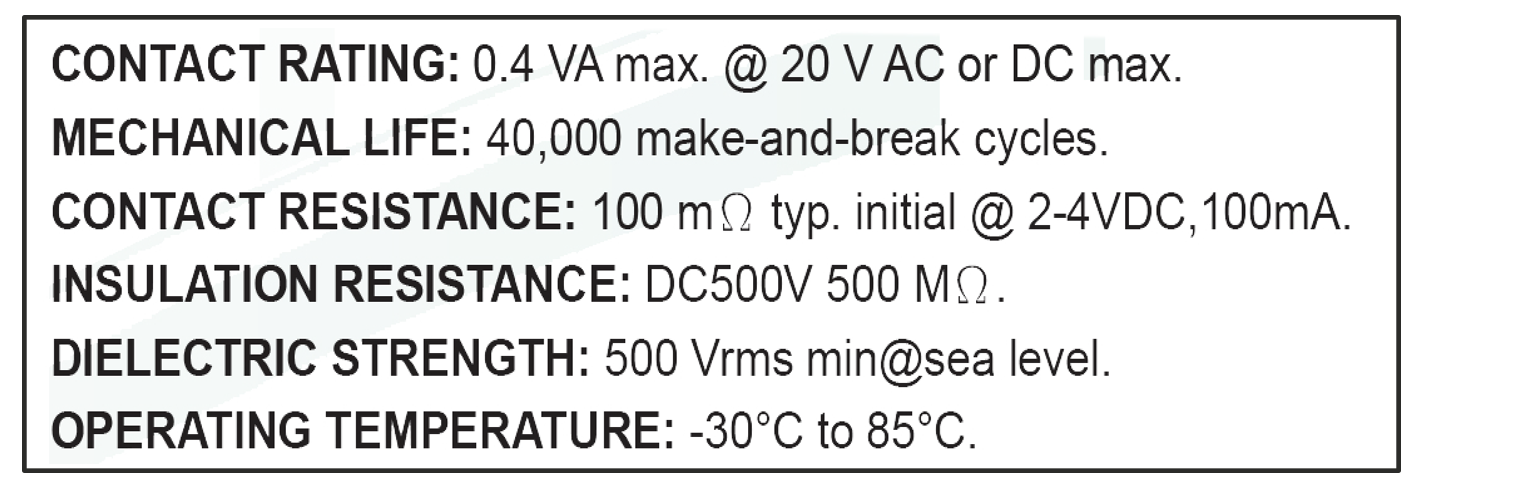

| Function | |
|---|---|
| Contact Rating | 0.4 VA max. @ 20V AC or DC max. |
| Mechanical Operations | |
| Contact Resistance | 100 mΩ typ. initial @ 2-4VDC, 100mA |
| Insulation Resistance | DC500V 500 mΩ |
| Dielectric Strength | 500 Vms min@ sea level. |
| Product Series |

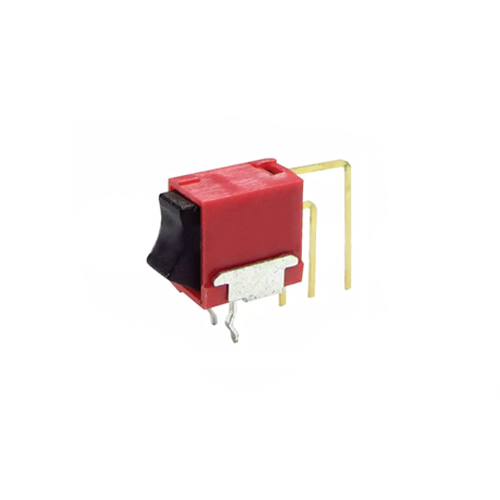

This Ultra-miniature Rocker Switch features right angle PCB mounting and an SPDT configuration. It has a latching function and a contact rating of up to 0.4VA.
Key Features:
| Function | |
|---|---|
| Contact Rating | 0.4 VA max. @ 20V AC or DC max. |
| Mechanical Operations | |
| Contact Resistance | 100 mΩ typ. initial @ 2-4VDC, 100mA |
| Insulation Resistance | DC500V 500 mΩ |
| Dielectric Strength | 500 Vms min@ sea level. |
| Product Series |
