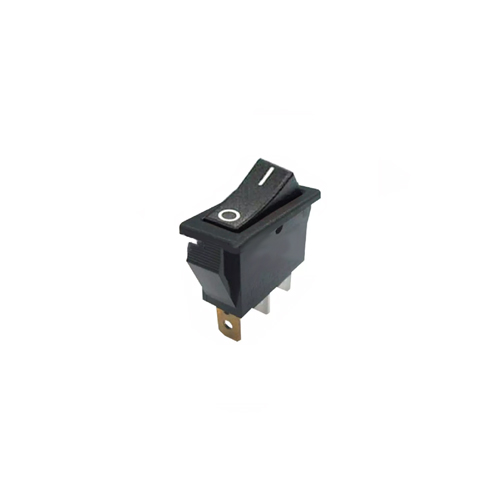

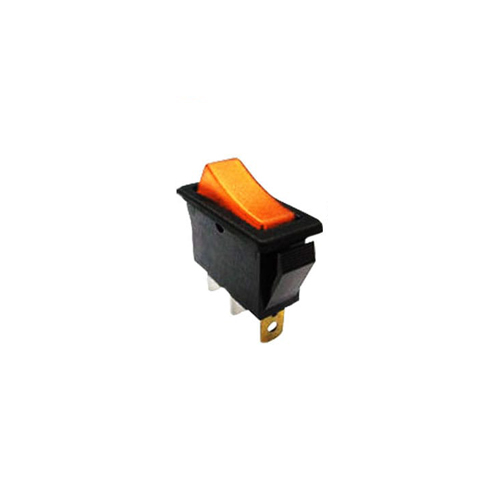

This Rocker Switch is available with an SPST or SPDT configuration, LED illumination and on/off symbols. It has dimensions of 11mm x 30mm and is mounted vertically.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Electrical Operations | |
| Mechanical Operations | |
| Product Series | |
| Contact resistance | < 20mΩ |
| Insulation resistance: | >1, 000MΩ |
|
Electrical Rating |
20A 125VAC/16A 250VAC (UL), 16A 250VAC (VDE) |
|
Mechanical Life |
Over 30,000 cycles |
|
Electrical Life |
Over 10,000 cycles |
|
Contact Resistance |
<20 m Ω |
|
Insulation Resistance |
>1000 M Ω |
|
High Voltage Resistance |
>1500V 1 min. |
|
Ambient Temperature |
Terminal side -20°C to 85°C Actuating side -20°C to 55°C |
|
Storage Temperature |
-30°C to 80°C max |
|
Atmospheric Humidity |
Max 85% |
|
Actuating Force |
4~8N (depends on switch function) |
|
Flammability |
UL94 V-2 |
|
Temperature Rise at the Terminal |
Max 30°C (UL1054) |
|
Solderability of Terminal |
Max 350°C, 3s |
