| Function | |
|---|---|
| Illumination | |
| Mechanical Operations | |
| Electrical Operations | |

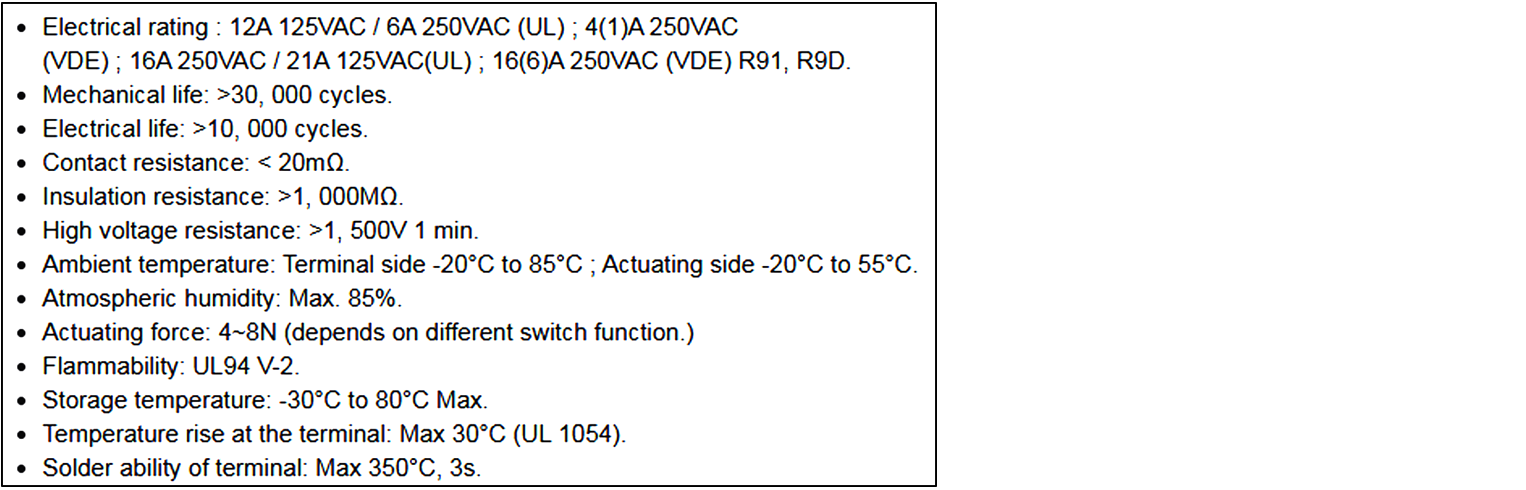

| Contact resistance: | < 20mΩ |
| Insulation resistance: | >1, 000MΩ |
| Actuating force: | 4~8N (depends on different switch function.) |
| Product Series |

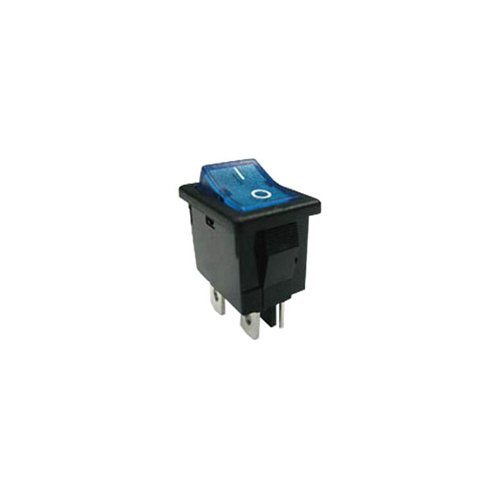

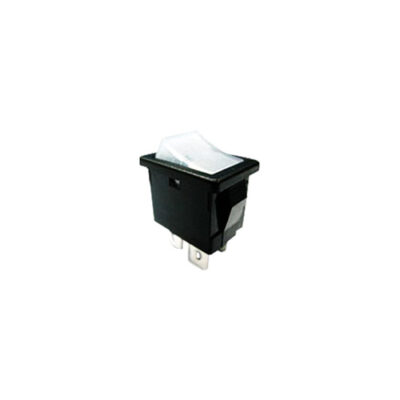

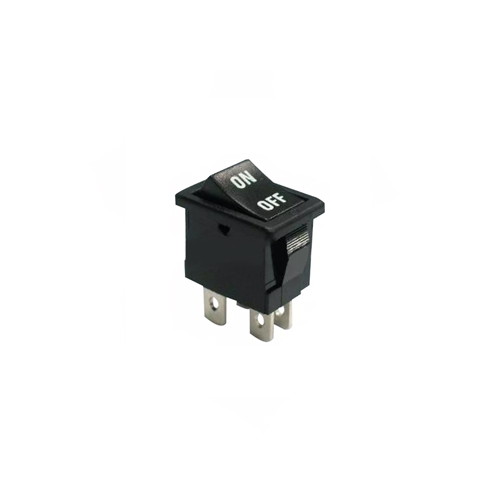

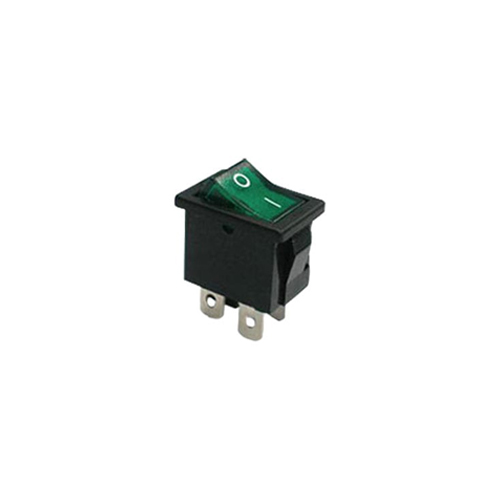

This Rocker Switch is available with an SPST or DPST configuration, LED illumination and on/off symbols or text. It has dimensions of 13mm x 19mm and is mounted vertically.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Mechanical Operations | |
| Electrical Operations | |
| Contact resistance: | < 20mΩ |
| Insulation resistance: | >1, 000MΩ |
| Actuating force: | 4~8N (depends on different switch function.) |
| Product Series |
