| Function | |
|---|---|
| Mechanical Operations | |
| Electrical Operations | |
| Product Series | |
| Contact Resistance | 20mΩ |
| Illumination | |
| Insulation resistance | 1, 000MΩ. |
| High voltage resistance | 1, 500V 1 min |

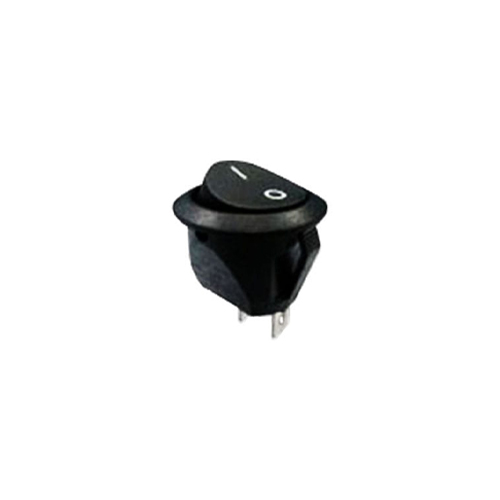

This Rocker Switch is available with an SPST or SPDT configuration, LED illumination and on/off symbols. It has a diameter of 20.2mm and is mounted vertically.
Key Features:
| Function | |
|---|---|
| Mechanical Operations | |
| Electrical Operations | |
| Product Series | |
| Contact Resistance | 20mΩ |
| Illumination | |
| Insulation resistance | 1, 000MΩ. |
| High voltage resistance | 1, 500V 1 min |
