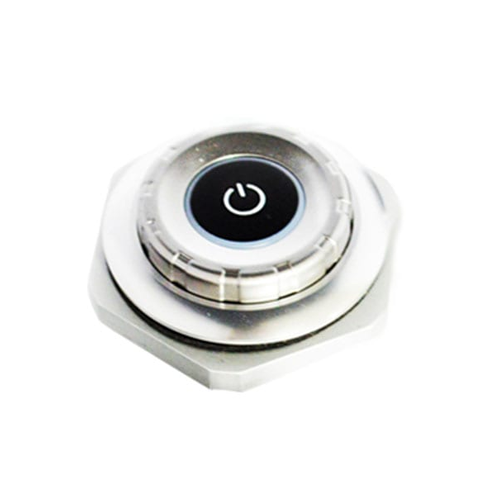

Navigation Switch: SF39EB

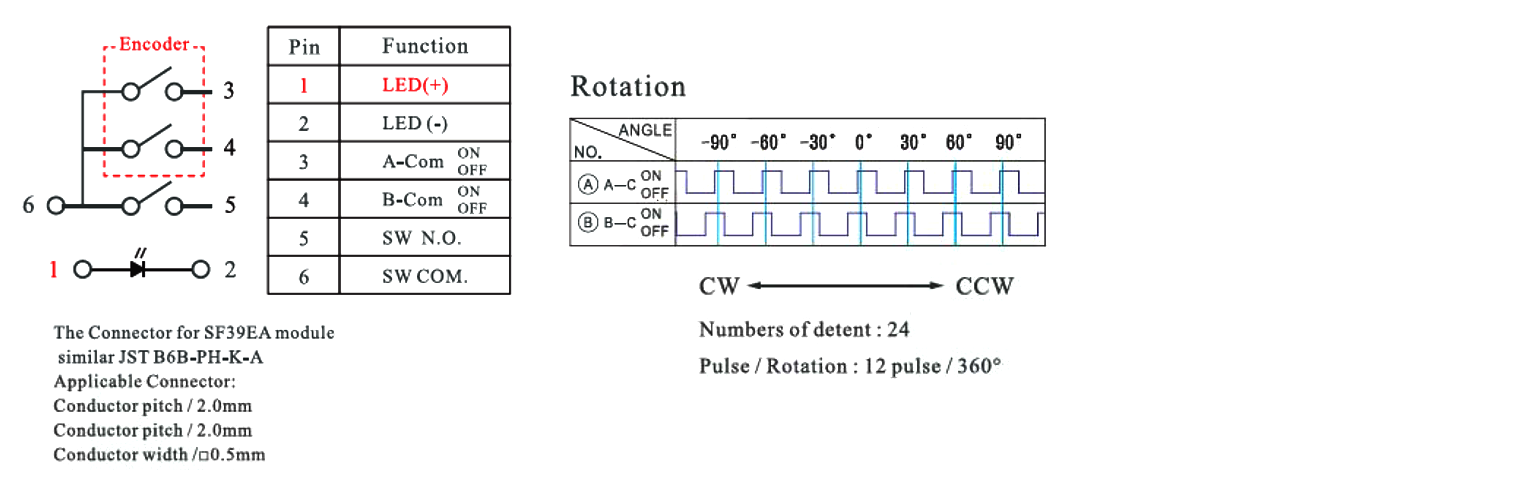

This Rotary Encoder Navigation Switch has single colour LED illumination and a centre button. Available with a momentary function, 12 pulse/360 degree rotation and 24 detents.

Key Features:

  • Ø 39mm panel cut out
  • Rotary encoder switch with centre button
  • Momentary function
  • Single colour LED illumination
  • 1mA @ 10V DC
  • 12 Pulse
  • Number of detents: 24
  • Raised actuator
  • Flush actuator
  • Power Symbol / Custom markings available*

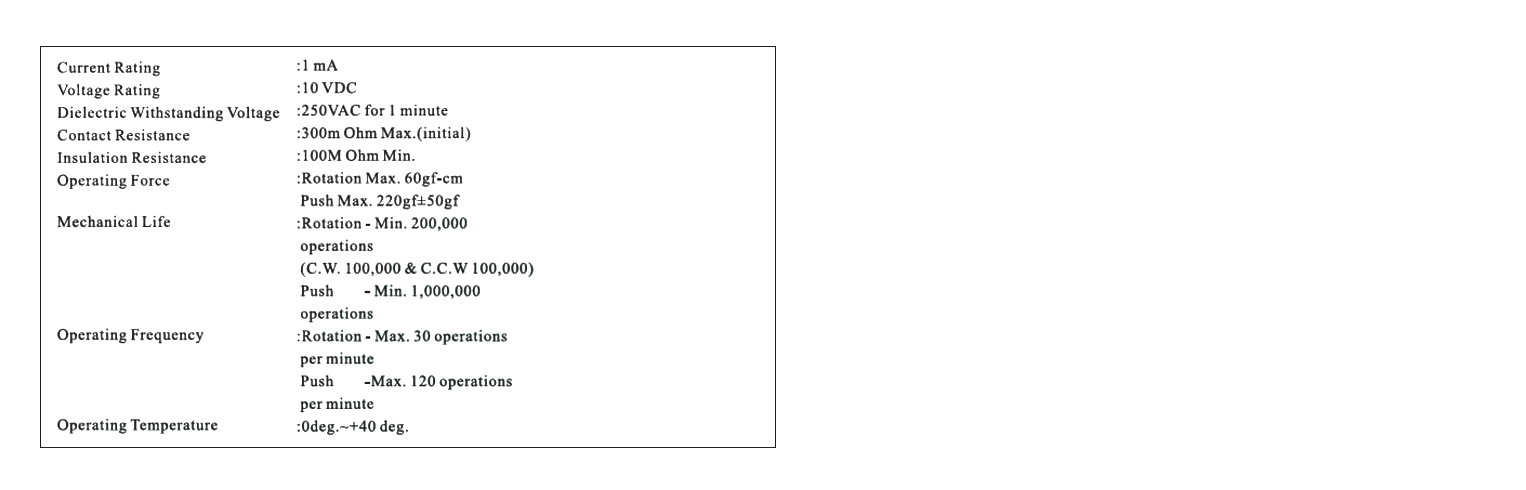

Data Sheet

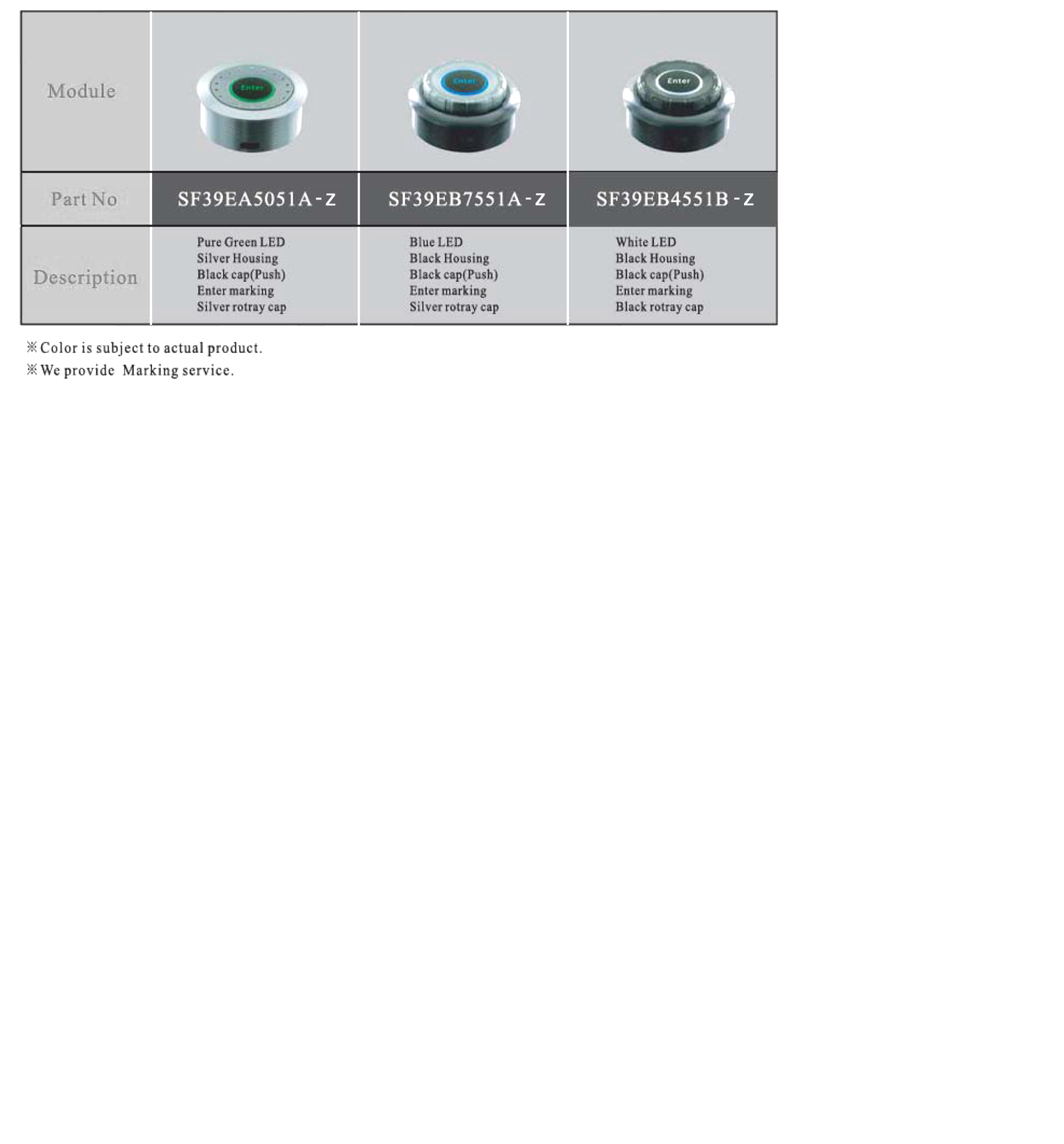

Product Series

Configuration

Illumination

,

Single LED options

, , ,

Function

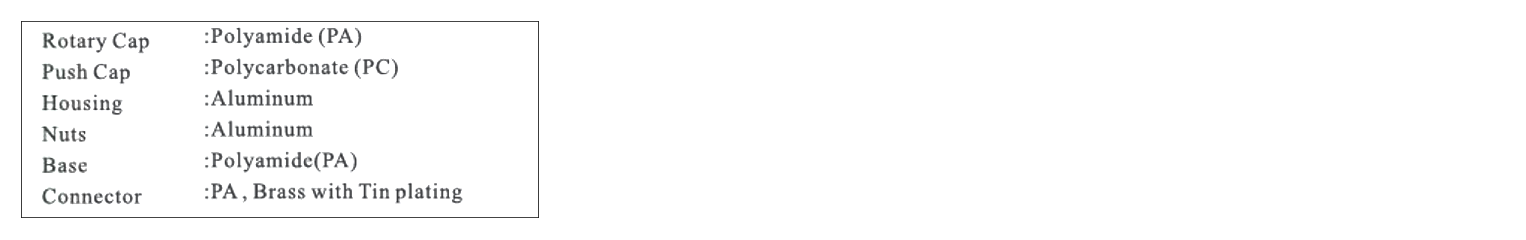

Product Material Options

,

Terminal Options

Panel Cut-Out Diameter

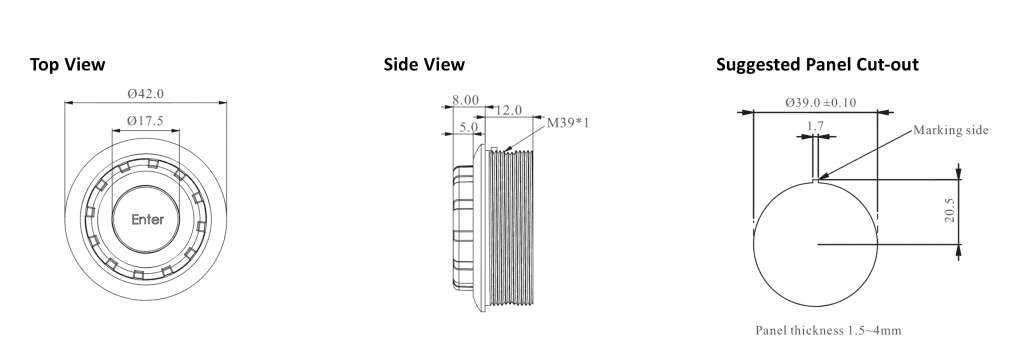

drawing for navigation switch, SF39EB, RJS electronics ltd
