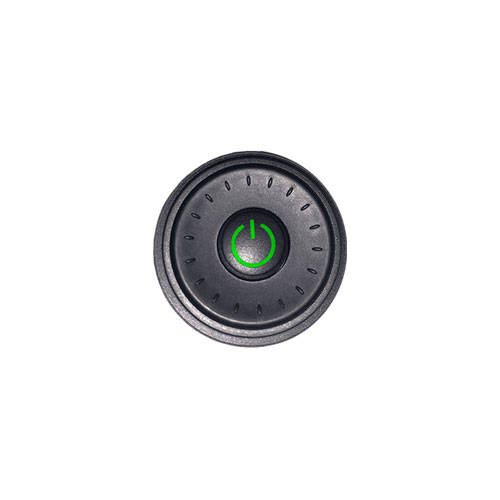

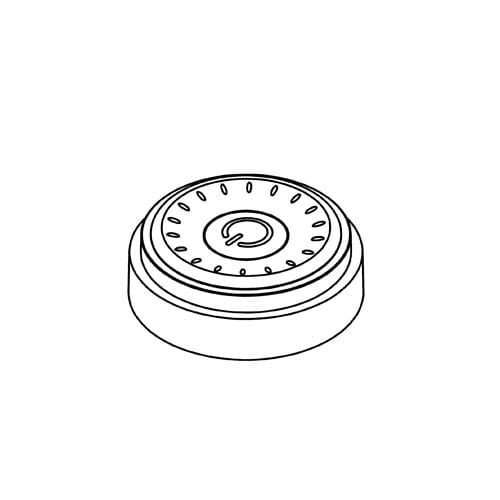

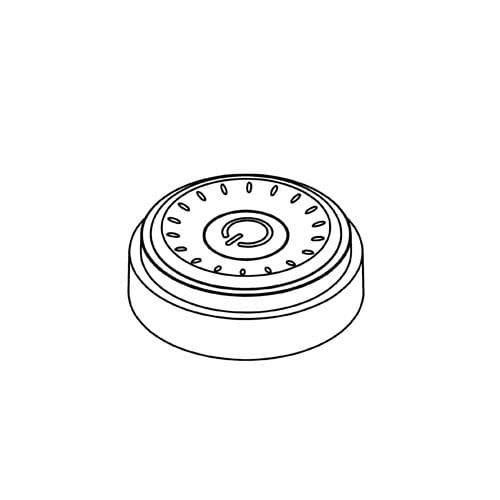

This Multifunctional Rotary Encoder Navigation Switch features 360° rotation and a momentary push button function. LED illuminated with custom markings available.
Key Features:
| Function | |
|---|---|
| Product Series | |
| Illumination |
|

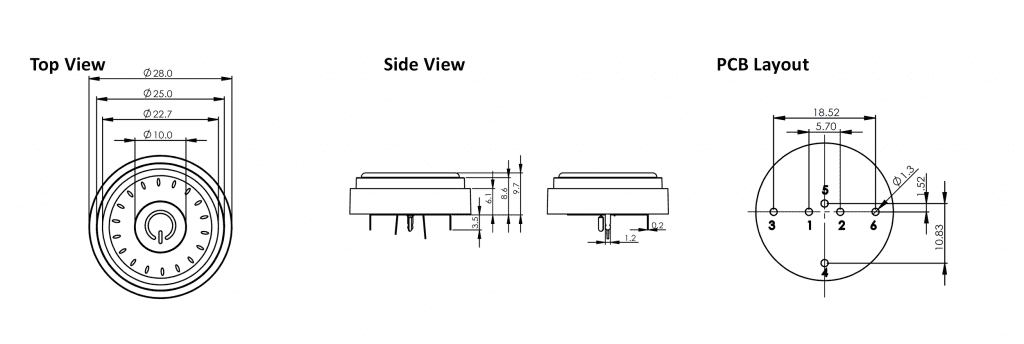

RJS-SFA-Z Series Specification
|
|
| Current rating | 1mA |
| Voltage rating | 10VDC |
| Dielectric withstanding voltage | 250VAC for 1 minute |
| Contact resistance | 300mOhm max(initial) |
| Insulation resistance | 100Mohm min |
| Operating force | Rotation- max 60gf-cm
Push- max 220gf+50gf |
| Mechanical life | Rotation- min 200,000 operations
(C.W 100,000 & C.C.W 100,000) Push- min 1,000,000 operations |
| Operating temperature | 0deg~+40deg |
|
RJS-SFA-Z Series Materials
|
|
| Rotary cap | Acrylonitrile butadine styrene (ABS) |
| Push cap | Polycarbonate (PC) |
| Terminal | Brass with silver plating |
| Base | Polyamide (PA) |
