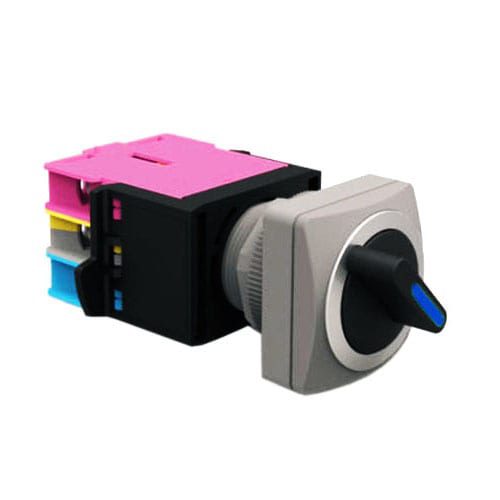

RJSMS2225E Square Illuminated Selector, Panel mount, selector switch with LED illumination, supports custom etching or available without LED illumination. Square bezel with a rotary round selector switch, momentary, maintained or latching function, SPDT/DPDT, single LED illumination available in Red, Amber, Green, White, Blue or Yellow. led switches, RJS Electronics Ltd.

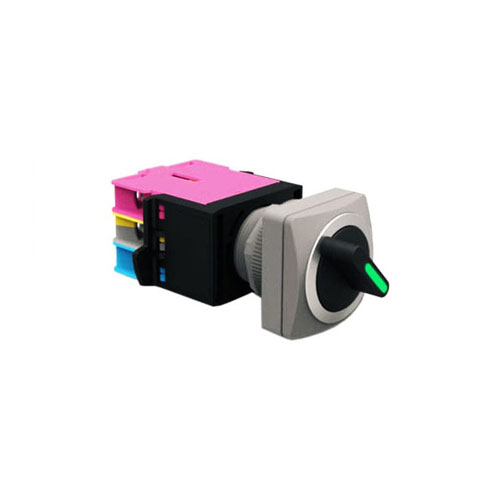

RJSMS2225E Square Illuminated Selector - Image 2

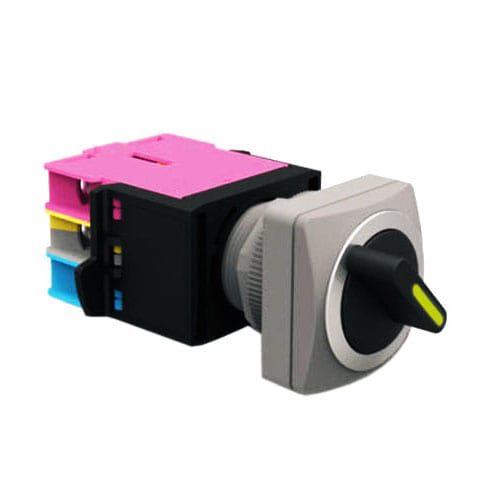

RJSMS2225E Square Illuminated Selector - Image 3

RJSMS2225E Square Illuminated Selector

This Selector Switch has a momentary or latching function and LED illumination. It can have a 2 position or 3 position configuration and is IP65 rated (from the front).

Key Features:

  • 22mm panel cut out
  • LED illuminated
  • Momentary/latching function
  • 2/3 positions
  • Terminal block
  • IP65 rated (front)
Data Sheet
Product Series

Electrical Operations

Mechanical Operations

Illumination

,

Single LED options

, , , , ,

Cap / Actuator Shape

Function

IP Rating

Bezel Shape

Panel Cut-Out Diameter

,

Terminal Options

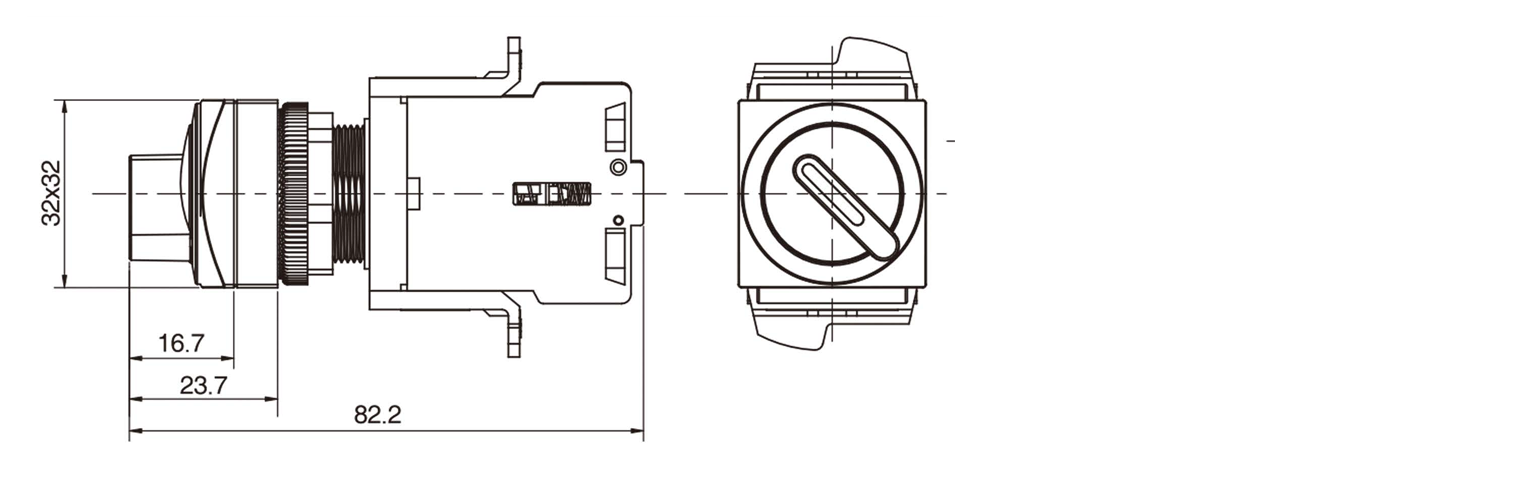

Drawing of RJSMS2225E Square Illuminated Selector Panel mount, selector switch drawing with LED illumination, supports custom etching or available without LED illumination. Square bezel with a rotary round selector switch, momentary, maintained or latching function, SPDT/DPDT, single LED illumination available in Red, Amber, Green, White, Blue or Yellow. RJS Electronics Ltd.
